Walchem RT-50 PRISM Inline Refractive Index & BRIX Sensor for Cutting Fluid, 316L Stainless Steel

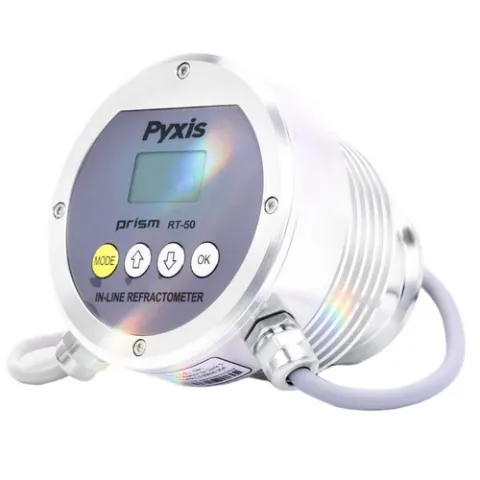

The Pyxis RT-50 Prism is an inline digital refractometer that measures the refractive index of a liquid sample and provides a direct reading of highly accurate concentration values for a wide variety of process applications including cutting fluid concentration detection. It is a stand-alone device capable of self-sustained operation, live data display and data logging. The RT-50 Prism also offers fully integrated 4-20mA and RS-485 Modbus output signals for connectivity to any microprocessor-based controller, display, PLC or DCS network. In addition, the RT-50 Prism has built-in temperature dependent equations to convert the measured sample temperature and refractive index to the BRIX concentration. User defined concentration curves and output may also be programmed to the RT-50 through the uPyxis APP interface through user entry of know formula coefficient values. Furthermore, this enables the RT-50 to provide a user-customized display and output of the concentration of the material being measured, as desired.

Typical Applications:

• Refractive Index Direct Read for Process Applications
• User Defined or Brix Concentration Process Applications
• Ideal for Cutting Fluid Concentration Measurement
• Specific Gravity Determination via Refractive Index

Features:

• 4-20 mA output of temperature and concentration unit of display selected via the screen interface
• User Defined Product Concentration Curve Entry via uPyxis APP
• User Customizable 4-20mA concentration output ranges with uPyxis APP
• RS-485 Modbus RTU output of temperature, refractive index and other diagnosis parameters
• Built-in temperature dependent equations % BRIX
• Local Display and Push-Button Interface
• Optional 110/220VAC - 24 VDC Wall Outlet Powered for Independent Operation w/out controller
• Built-In Historical Data Log up to 56 Days of Storage at 1 Reading Per Minute via uPyxis APP
• Bluetooth Enabled when used with MA-CR Bluetooth Adapter
• Sturdy 316L stainless-steel construction and suitable for harsh application environments
• Convenient Stainless-Steel Tri-Clamp Flow Cell Assembly w ¾-inch NPT Flange
• Easy Installation and Removal for Cleaning and Maintenance - No Tools Needed
• Automatic Cleaning with RT-Series Ultrasonic Cleaning Module Kit (Purchased Separately)

For more information, please see Data Sheet and Manual
