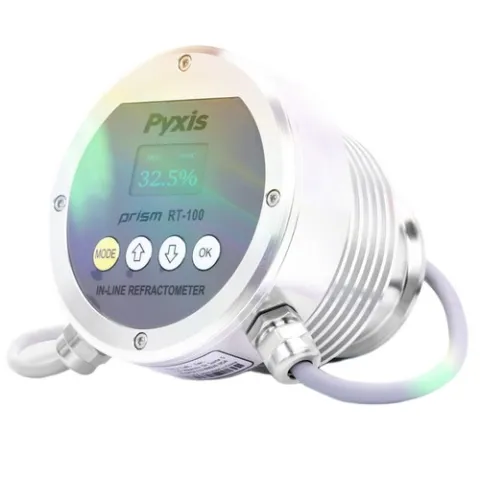

Walchem RT-100 PRISM Inline Refractometer, 316L Stainless Steel

The Pyxis RT-100 Prism is an inline digital refractometer that measures the refractive index of a liquid sample and provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications. It is a standalone device capable of self-sustained operation, live data display and data logging. The RT-100 Prism also offers fully integrated 4- 20mA and RS-485 Modbus output signals for connectivity to any microprocessor-based controller, display, PLC or DCS network. The RT-100 Prism has built-in temperature dependent equations to convert the measured sample temperature and refractive index to the percentage concentration of Mono Ethylene Glycol (MEG), Mono Propylene Glycol (MPG), Sugar Content (Brix) and Advanced Low Viscosity Fluid (ALV).

Typical Applications:

• Refractive Index Direct Read for Process Applications
• Mono-Ethylene Glycol Closed Loop System Monitoring
• Mono-Propylene Glycol Closed Loop System Monitoring
• Brix/Sugar Concentration Process Applications
• Advanced Low Viscosity Fluid Heat Transfer Fluid
• Specific Gravity Determination via Refractive Index

Features:

• 4-20 mA output of sample temperature and the unit of display selected via the screen interface
• User customizable 4-20mA concentration output ranges with uPyxis APP
• RS-485 Modbus RTU output of temperature, refractive index and other diagnosis parameters
• Built-in temperature dependent equations % BRIX, %MPG, %MEG and % ALV
• Future Addition of Product Concentration Curves by Pyxis as Market Requests
• Local Display and Push-Button Interface
• Optional 110VAC - 24 VDC Wall Outlet Powered for Independent Operation w/out controller
• Built-In Historical Data Log up to 56 Days of Storage at 1 Reading Per Minute via uPyxis APP
• Bluetooth Enabled when used with MA-CR Bluetooth Adapter
• Sturdy 316L stainless-steel construction and suitable for harsh application environments
• Convenient Stainless-Steel Tri-Clamp Flow Cell Assembly w ¾-inch NPT Flange
• Optional RT-Series Ultra-Sonic Cleaning Module sold separately

For more information, please see Data Sheet and Manual
