Features:

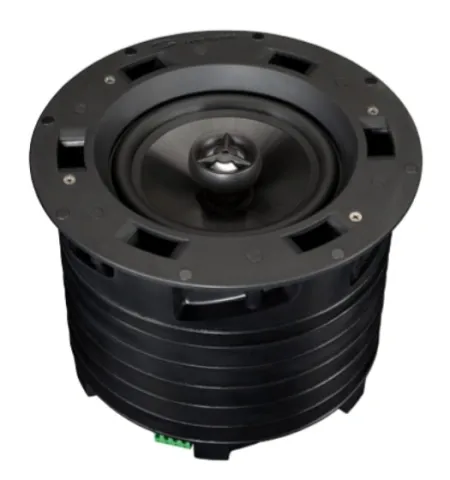

- Speaker Type - In Ceiling/In Wall 2-Way
- Woofer - 8″ Fluted Injected Poly
- Tweeter - 1″ Aluminum Dome
- Frequency - 35 Hz - 24 kHz
- Sensitivity - 92db
- Butyl Rubber Surround
- Sonic Vortex® Ported Transmission Line
- Magnetic Bezelless Grille - White; paintable
- Low Impedance - 8Ω
- 25V Taps - 0.3, 0.5, 0.9, 1.8, 3.5 Watts
- 70V Taps - 1.9, 3.8, 7.5, 15, 30 Watts
- 100V Taps - 3.8, 7.5, 15, 30 Watts
- Connector Type - Four position plug-in screw terminal
- Power Handling - In 8Ω Mode - 5-120W
- Speaker Weight - 8.38 lbs (3.8kg)
- Cutout - 10.3″ (261.5mm)
- Diameter - 11.3″ (284mm)
- Depth - 8.6″ (219.5mm)
- EZBracket Size - B
- Highlights - 25/70/100 Volt Switchable
For more information, please see Technical Data Sheet
