Vanco PA-EARCX HDMI Audio Extractor with eARC and ARC

Extracts audio from an ARC/eARC equipped display or HDMI source to break out audio to an A/V Receiver or amplifier without ARC functionality.

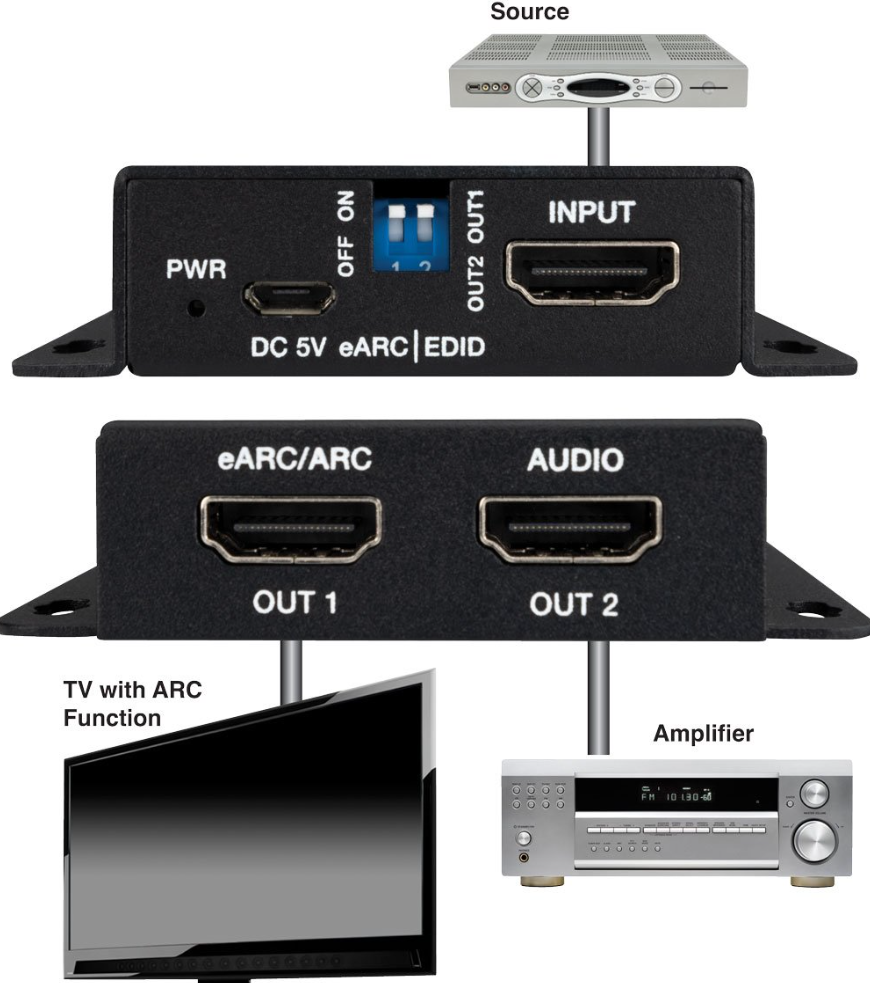

The PulseAudio PA-EARCX is an HDMI audio extractor which can de-embed or break out audio from an HDMI 4K HDR display equipped with Audio Return Channel (ARC) and/or Enhanced Audio Return Channel (eARC). Break out audio from the HDMI signal to a soundbar, A/V Receiver, or amplifier without affecting the HDMI 2.0 output to the main display. Features two HDMI outputs, one for video capable of passing 18 Gbps, 4K at60Hz with HDR content, while the second HDMI output is dedicated for extracting ARC/eARC audio. For extracting audio from the latest 4K and eARC components, the PA-EARCX is the perfect solution.

Features:

• Extracts audio signals from an HDMI source signal
• Supports Enhanced Audio Return Channel (eARC) and ARC
• Passes 4K at60Hz 4:4:4 resolution
• Supports HDR (High Dynamic Range) with HDR10, HDR10+, Dolby Vision formats
• Dolby and DTS format pass-through such as Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
• HDMI 2.0b and HDCP 2.3 compliant
• Supports 18Gbps video bandwidth
• Built-in equalizer
• Support CEC functionality
• Advanced EDID management
• Dimensions: 2.5" W x 2.75" D x 1.5" H (65mm W x 70mm D x 27mm D)

Package includes:

• (1) Audio extractor
• (1) USB cable (USB-A to Micro USB)
• (1) USB power adapter
• (1) Product manual
