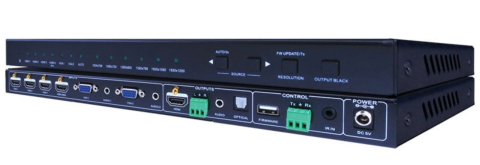

Vanco EVSW1061 Evolution 6 x 1 Multi - Format Scaler Switcher, Supports HDMI, VGA, MHL, upscales to 4K

Features:

• Compact 6x1 multi-format switcher with 6 video inputs (3 HDMI- 2 VGA- 1 HDMI/MHL)- 2 auxiliary audio inputs mirrored to the VGA inputs- 1 HDMI output and 3 audio outputs (1 dual-mono analog audio- 1 3.5mm stereo audio- 1 optical audio)
• Switches VGA or HDMI/DVI/MHL input signals to HDMI output
• Scales to 6 different resolutions- VGA to HDMI output - Output resolutions selectable to assure preferred output. Supports various output resolutions- such as 1920x1200- 1920x1080- 1360x768- 1280x800- 1024x768- 1280x720
• Bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D
• Transmits 4K/UHD @ 30 HZ up to 50 ft. / 15m
• Supports RS232 and IR control
• Supports advanced EDID management
• Supports MHL 2.0- Maximum Resolution 1080p
• MHL auto detection- Supports device charging over MHL- maximum 5V 900mA
• HDCP 1.4 Compliant
• Two input switching modes: auto-switching or manual-switching
• Intuitive indicator for power connect states- source selection- and output resolution selection
• Supports Audio and Video output management via Output Black button
• Features a Type A USB port for Firmware upgrades
• Compact design for easy operation- works in a variety of applications from security monitoring- conference rooms- classrooms- control center and smart homes
• Features off memory for reliable operation - input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
• Supports hot plug
• Dimensions: 13.7" W x 1.1" H x 4.3" D

For more information, please see Technical Data Sheet
