Features:

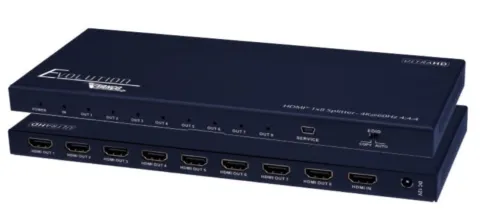

- Transmits audio and video from a single source to 8 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
- Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
- 3D frame sequential video format up to 1080p@60
- Supports high-resolution VESA mode video format up to QSXGA 2560x2048@60Hz
- Compliant with HDCP 2.2 sources and backward compatible with older versions of HDCP
- Dynamic and Manual EDID management modes to ensure compatibility during installation
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Supports Hot-plug
- High bandwidth: 18 Gbps
- Features status indicator for connection & input HDCP compliance
- Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
- Dimensions: 9.6" W x .6" H x 4.1" D
For more information, please see Technical Data Sheet
