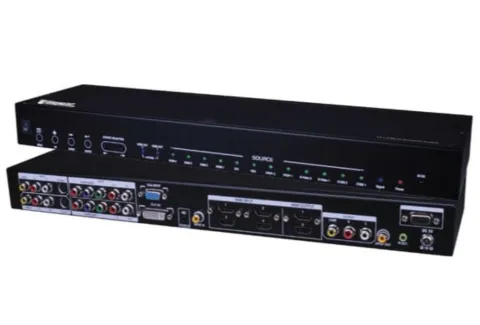

Vanco 280595 12x3 Multi - Function Switch/Scaler 12 inputs to 2 HDMI, Composite output, upscales to 1080p, IR & RS232 control

Features:

• Allows the conversion of up to 12 multi-format inputs to 2 mirroring HDMI outputs and 1 Composite output
• Upscales standard definition/high definition sources to resolutions up to 720p or 1080p- with both HDMI outputs working simultaneously along choice of composite output – some VESA formats can be bypassed by using VGA and DVI-I ports
• Buffers- amplifies and equalizes the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality
• 1 x VGA source
• 2 x S-Video source
• 2 x Composite AV sources with LR audio
• 2 x Component sources with LR audio
• 4 x HDMI sources
• 1 x DVI-I source
• Stereo input for audio
• S/PDIF input for digital audio
• HDMI Outputs feature bypass from either stereo input or S/PDIF input
• Features noise reduction and video enhancements when upscaling to 720p/1080p
• DVI-I supports both analog and digital formats with L/R and/or S/PDIF audio input
• Detached audio output by L/R and optical
• Delivers uncompressed digital video with zero signal loss
• Supports high definition resolutions up to 1080p
• Dual switching option: IR control with included remote and manual front panel control
• IR receiver included for IR extension
• Serial port for firmware update
• Power Supply: 5V 4A DC- UL Listed
• Dimensions: 17.25" (438.15mm) W x 1.75" (44.45mm) H x 4.75" (120.65mm) D
