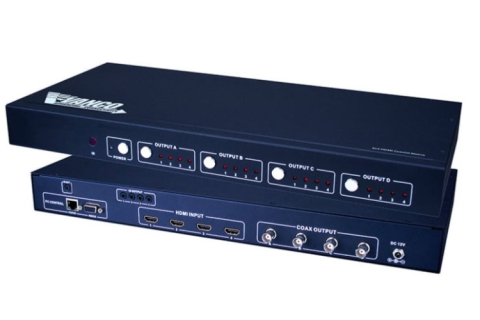

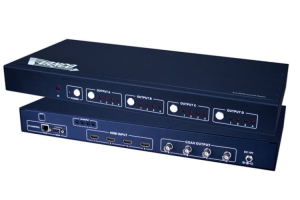

Vanco 280568 4x4 HDMI Coaxial Matrix, 4 HDMI Sources to 4 TVs, Up to 328 ft RG-6 Extension, RS-232/IR/TCP-IP Control

Features:

• Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
• Simple plug and play solution allows each output the ability to extend the HDMI signal up to 328ft/100m over a single BNC terminated coaxial cable (RG6)
• Features HDSDI technology- full 1080P HD video and audio
• Additional EDID management can be achieved using the RS232 connection and the interface to encourage device communication and compatibility for a seamless installation
• Supports wideband IR- 30-60KHz (IR accessories included)
• Control via RS-232- TCP/IP- IR- and manual on-panel control
• Supports smart EDID management
• Quick Install Kit includes Matrix Unit and 4 Receivers
• 12V DC- UL Listed Power supply for 4x4 matrix
• 5V DC- UL Listed Power Supplies for Receivers (4 total)
• 4x4 Matrix Dimensions: 17.31″ (440mm) W x 1.75″ (44.45mm) H x 7.875 (200mm) D
• Receiver Dimensions: 2″ (50mm) W x 1″ (25mm) H x 3.125″ (80mm) D

For more information, please see Technical Data Sheet
