Van Essen AS351 Smart Interface Cable & DDC-DXT Adapter for AS6xxx Diver Data Cables

DDC-DXT Adapter

Connect the Smart Interface Cable to DDC Cables with the DDC-DXT Adapter.

The DDC-DXT Adaptor is the connection between the Smart Interface Cable and a DDC cable. The Smart Interface Cable screws onto the DDC-DXT Adaptor. Once connected, the Diver deployed on the cable can be read by clicking the DDC-Adaptor onto the top connector of the DDC Cable.

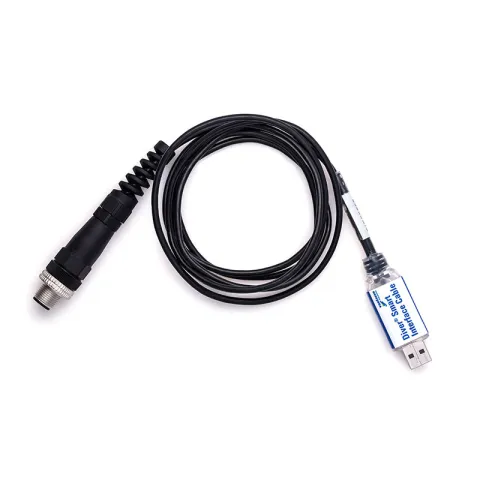

Diver Smart Interface Cable

Connect the Divers deployed on a communication cable (DXT or DDC) to a PC, laptop and/or tablet.

The Diver Smart Interface Cable is a communication device that links the Divers to a PC, laptop, and/or tablet. Simply plug the Smart Interface Cable into any available USB port on the computer and connect the other end to the communication cable. The deployed Diver can now be accessed using the free Diver-Office software. Once connected, the Diver can be programmed, settings read, or data downloaded.

• Features a barometric sensor that allows for real-time comparison of Diver readings and manual measurements. After connecting the Smart Interface Cable, the Diver can be returned to its original position in the well with the supplied Suspension Plate.
• Features indicators that identify if a cable is connected, a Diver is connected to the communication cable, or if the communication cable is malfunctioning.
• Can be used for communication cables from 1 meter up to 500 meters in length.
• Designed for use in the field and supports all Divers.

Note: Diver-Office 2017.2 or later must be installed to communicate to the Diver through the Diver Smart Interface Cable.

Features:

• Real-time atmospheric pressure measurement
• Informational indicators: ready, sending data, receiving data
• Warning indicators: Diver not connected/communicating, cable malfunctioning

Benefits:

• Plug-and-play
• Compare Diver measurements to manual measurements

Applications:

• Real-time monitoring of municipal water supplies
• Saltwater intrusion monitoring
• Monitoring water quality and quantity at mine sites
• Monitoring water level and salinity of reclaimed water
• Groundwater monitoring networks
