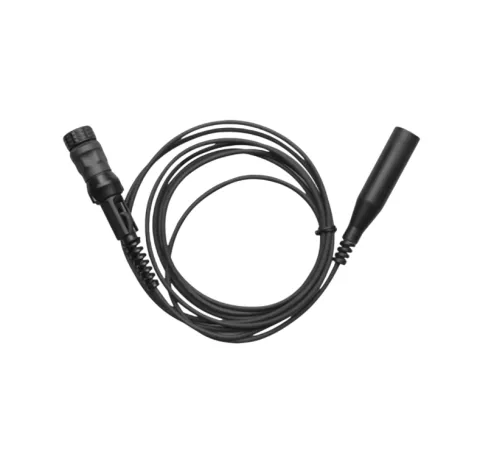

Van Essen AS2020 DXT Cable Black UV Resistant FR Polyurethane 20m

Quick and easy data downloading with a Diver deployed on a data cable.

Deploying a Diver on a Diver communication cable saves time on downloading and provides real-time data from your Diver. Connect your laptop equipped with Diver-Office to the DXT-Cable using the USB Interface Cable to program and read data from the Diver.

This DXT-cable can be used for stand-alone applications or to directly connect to the Diver-Link, Diver-MOD, or Diver-SDI. In case of stand-alone use, not connected to any one of these accessories, the Well Top must be used to seal the cable and prevent it from falling into a well with a diameter of 2 inches or less.

Features:

• Program, read data, stop and start from the top of the well.
• Read Diver data using the Diver-Mate.
• User-adjustable standard lengths.
• One eye technology.

Benefits:

• No redeploying and displacement of the Diver after reading data.
• Fit the cable to your needs.
• Easy installation.
• Easily screws on the Diver, no alignment necessary.

Applications:

• Long term water level monitoring
• Groundwater monitoring networks
• Engineering and construction: Pump tests
• Aquifer characterization: Pump and slug tests
• Pollution monitoring: Landfill leachate monitoring

Compatible Diver models:

• TD-Diver (DI8xx)
• Baro-Diver (DI800)
• Micro-Diver (DI6xx)
• Cera-Diver (DI7xx)
• CTD-Diver (DI27x)
• Mini-Diver (DI5xx)
• Baro-Diver (DI500)
