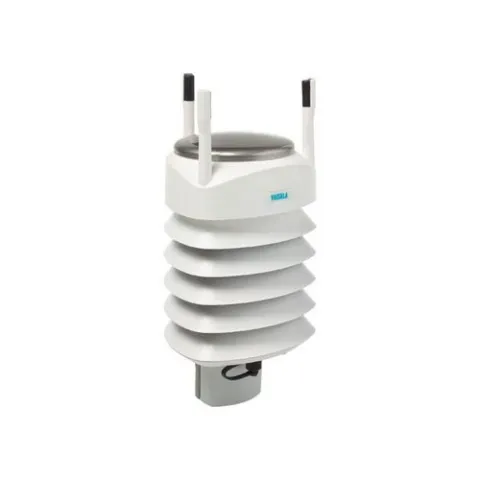

Vaisala WXT530 Weather Transmitter WXT530 Series

Note: Price show for Part Number: WXT530-1A1A1A1A1A1A

Need a different configuration?

Use the Configuration Table to select one option from each category and build your part number. Send us the configuration and we'll provide pricing and availability.

Vaisala Weather Transmitter WXT530 series is a unique collection of cost-effective sensors that accurately and reliably measure weather conditions. They can capture any combination of wind, rain, temperature, and barometric readings in a compact, affordable package. WXT530 models utilize solid state technologies that minimize operating and maintenance costs. Digital and analog interfaces make for easy, flexible integration, and third-party sensors can be connected to select WXT530 models to create your own weather parameter hub.

Features:

• Proven sensor technologies used by leading meteorological agencies.
• Ultrasonic WINDCAP® wind sensor has no moving parts and provides accurate wind speed and direction measurement.
• Acoustic RAINCAP® sensor operates without flooding, clogging, wetting, and evaporation losses and provide maintenance-free operation.
• Combined, changeable PTU module (barometric pressure BAROCAP®, temperature, and humidity HUMICAP® measurements).
• Compliance with marine standard IEC60945 and DNV GL approved.
• Very low power consumption (typical 3.5mA at 12 VDC) is ideal for battery and solar panel powered system.
• Compact design, light-weight, single cabling for all measurements and secure one bolt mounting make installation and deployment easy and fast.
• Mounting kit for 30mm tube is available in the configuration, and an adapter for 60mm tube can be found under Related Items
• The model available here features RS-232 and ASCII. Please contact Vaisala sales if you need another configuration option, such as Modbus RTU

For more information, please see Data Sheet
