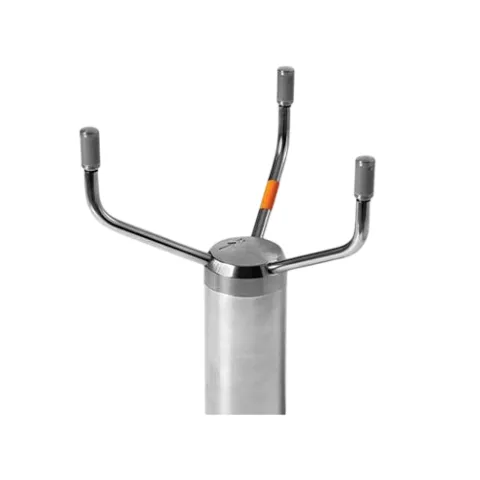

Vaisala WMT700 WINDCAP Ultrasonic Wind Sensor

Note: Price show for Part Number: WMT700-1A1A0A001A1A1

Need a different configuration?

Use the Configuration Table to select one option from each category and build your part number. Send us the configuration and we'll provide pricing and availability.

The WINDCAP® Ultrasonic Wind Sensor WMT700 is a robust, reliable ultrasonic anemometer that provides surface wind direction and wind speed measurement that is WMO, CIMO, and ICAO compliant. Ultrasonic wind sensor technology in the WMT700 delivers highly accurate wind speed and direction information ranging from barely perceptible winds to extremely high gusts. It is also highly accurate in conditions where mechanical instruments fail, including heavy precipitation, severe icing, strong winds, heavy sand and dust, and offshore maritime installations. Optional heaters in the transducer, arm, and/or body prevent build-up of freezing precipitation.

Features:

• WMO and ICAO compliant
• Data output rate 4 Hz and 8 Hz
• Stainless steel structure
• Maintenance-free
• 3-transducer layout provides accurate data
• Data format outputs: polar coordinates and vectors
• Fully compensates effects of temperature, humidity, and pressure
• Heating up to 250 W
• IP66 and IP67
• Measurement range up to 90 m/s (201 mph)
• Large transducers provide high ultrasound power
• Optional bird prevention kit
• Wind gust calculated according to WMO guidelines
• US National Weather Service and the FAA rely on Vaisala WINDCAP technology

For more information, please see Data Sheet
