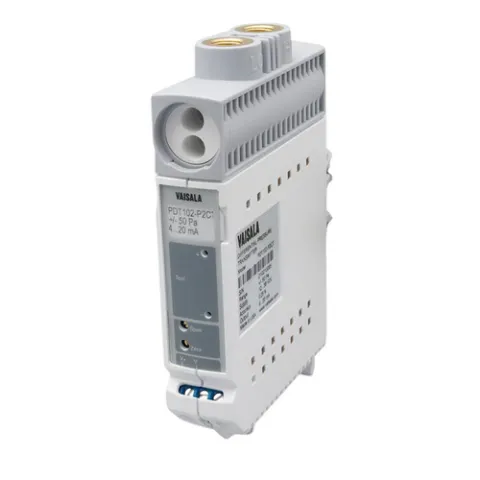

Vaisala PDT102-W5V Differential Pressure Transmitter 0-5VDC (+/-0.25in H2O) 0.5% Span Accuracy

A high performance instrument designed primarily for life science and high technology cleanroom applications, the PDT102 features a robust MEMS silicon sensor technology that provides superior accuracy, sensitivity, stability and durability.

Features:

• In-place system calibration and on-line monitoring without disturbing process tubes
• Ultrathin profile ideally suited for DIN rail mount reduces installation and calibration costs
• High accuracy, two options; 0.25% or 0.50% of span designed for use in critical monitoring of cleanrooms for pharmaceutical, biotechnology, medical device and semiconductor controlled manufacturing environments
• Extremely robust MEMS silicon sensor technology provides very high accuracy, sensitivity, stability and durability
• NIST traceable 9 point calibration with certificate
• Front side accessible zero and span adjustment potentiometers

Operating environment

Vaisala Differential Pressure Transmitter PDT102 is a high performance instrument designed primarily for life science and high technology cleanroom applications. The front panel includes zero and span adjustment potentiometers for convenient adjustment. The PDT102 transmitter is ideal for incorporating into the Vaisala viewLinc Continuous Monitoring System to measure and monitor the critical environmental parameters as required in regulated environments.

Performance

PDT102 offers very high accuracy, sensitivity and stability with two options for accuracy, 0.25% or 0.50% of span providing a highly reliable and repeatable measurement. The sensor uses a micro-machined, ultra-thin silicon diaphragm which provides inherent sensor repeatability and stability. The sensor enables precise measurement and control in high performance cleanrooms.

Applications

PDT102 is designed for use in critical monitoring of cleanrooms for pharmaceutical, biotechnology, medical device, and semiconductor controlled manufacturing environments.

For more information, please see Data Sheet
