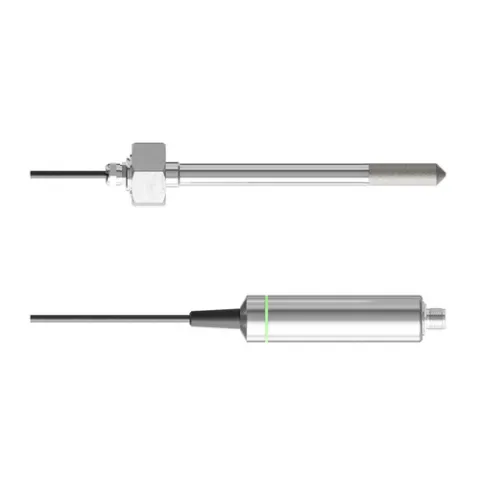

Vaisala HMPXPROBE4 HMP4 Relative Humidity and Temperature Probe for High Pressures with 2m Cable

HUMICAP® Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essential. The HMP4 is part of the Indigo product family and compatible with Indigo500, Indigo300 and Indigo200 series transmitters and free Insight PC Software.

Features:

• RH accuracy up to 0.8 %RH, Temperature accuracy up to 0.1 °C (0.18 °F)
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• Operating pressure 0 ... 10 MPa (0 ... 100 bar)
• Sensor purge provides superior chemical resistance
• Modbus RTU over RS-485
• Plug & play compatible with Indigo™ series of transmitters
• Traceable calibration certificate: 5 points for humidity, 1 point for temperature

Proven Vaisala HUMICAP® performance

Vaisala is the original innovator of the thin-film capacitive humidity measurement technology, which has now become the industry standard in humidity measurement. HUMICAP® technology results from Vaisala's 40-year experience in industrial humidity measurement, providing the best stability, fast response time, and low hysteresis in a wide range of applications.

Sensor purge minimizes effects of contaminants

In environments with high concentrations of chemicals and cleaning agents, the sensor purge option helps to maintain measurement accuracy between calibration intervals. The sensor purge involves heating the sensor to remove harmful chemicals. The function can be initiated manually or programmed to occur at set intervals.

Flexible connectivity

The probe can be used as a standalone digital Modbus RTU transmitter over an RS-485 serial bus, and it can also be connected to Indigo transmitters and the Indigo80 handheld indicator. For easyto-use access to field calibration, device analytics, and configuration functionality, the probe can be connected to Vaisala Insight software for Windows®.

Vaisala Indigo product family

Indigo transmitters extend the capabilities of Indigo-compatible measurement probes. The transmitters can display measurements on the spot as well as transmit them to automation systems through analog signals, digital outputs, and relays. The Indigo80 handheld indicator is ideal for spot-checking and process monitoring, as well as for configuring, troubleshooting, calibrating, and adjusting the probe

For more information, please see Data Sheet
