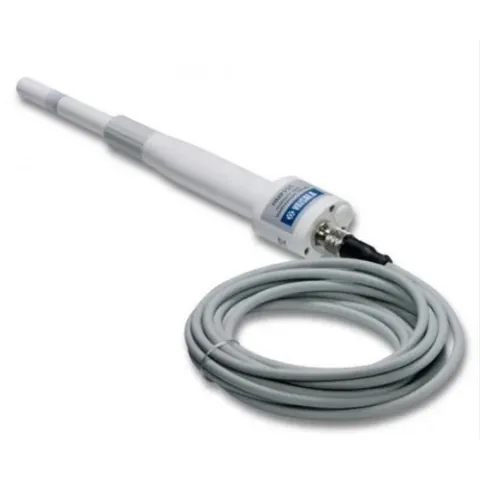

Vaisala HMP155 HUMICAP Humidity and Temperature Probe for Outdoor Applications

Note: Price show for Part Number: HMP155-A1AA11A0A0A1B0A

Need a different configuration?

Use the Configuration Table to select one option from each category and build your part number. Send us the configuration and we'll provide pricing and availability.

Vaisala HUMICAP® Humidity and Temperature Probe HMP155 provides reliable humidity and temperature measurement. It is designed especially for demanding outdoor applications.

Long-term stability

HMP155 uses the proven Vaisala HUMICAP®180R sensor that has excellent stability and withstands well harsh environments. The probe structure is solid and the sensor is protected by default with a sintered Teflon filter, which gives maximum protection against water, dust, and dirt.

Warmed probe and highhumidity environment

Measuring humidity reliably is challenging in environments where humidity is near saturation. Measurements may be corrupted by fog, mist, rain, and heavy dew. A wet probe may not give an accurate measurement in the ambient air. This is an environment to which Vaisala has designed this patented, warmed probe for reliable measurements. As the sensor head is warmed continuously,the humidity level inside it stays below the ambient level. It also reduces the risk of condensation forming on the probe.

Fast measurements

With its fast response time, the additional temperature probe for HMP155 is ideal for measuring in environments with changing temperatures. The membrane filter speeds up the relative humidity measurement.

Long lifetime

Protecting the sensor from precipitation, and scattered and direct solar radiation increases its lifetime. Vaisala recommends installing HMP155 in one of the following radiation shields: DTR503, DTR13, or Stevenson screen. For the additional temperature probe, an installation kit is available for Vaisala DTR502 Radiation Shield.

Calibration

The probe can be calibrated using a computer with a USB cable, with the push buttons, or with the MI70 indicator.

Features:

• Fast thermal response time
• Start-up time < 2 s
• Measurement range: 0 ... 100 %RH; -40 ... +60°C
• Detachable cable with standard 4-pin M8 connector
• Plastic enclosure with IP54 classification
• Proven Vaisala HUMICAP 180R sensor for excellent stability
• Optional dew point calculation

For more information, please see Data Sheet
