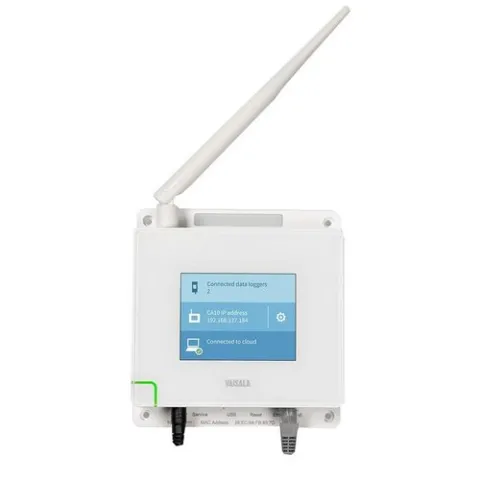

Vaisala CA10 Access Point for CWL100 Cloud Wireless Data Loggers

Note: Price show for Part Number: CA10-A0A0A1N

Need a different configuration?

Use the Configuration Table to select one option from each category and build your part number. Send us the configuration and we'll provide pricing and availability.

Features:

• Connects up to 32 CWL100 wireless data loggers to Vaisala Jade Smart Cloud
• Displays connection status of data loggers and cloud service
• Long range LoRa™ radio with over 100 m (328 ft) typical indoor range
• End-to-end data encryption
• Powered by Power over Ethernet (POE) or DC adapter
• Internet connection required

Cloud Access Point CA10 is part of the Vaisala Jade Smart Cloud system. CA10 is a wireless networking hardware device that connects CWL100 data loggers to Jade Smart Cloud service. CA10 enables management of the data loggers from the cloud interface. The access point always requires an Internet connection for operation.

CA10 access points and CWL100 data loggers are associated with a specific Vaisala Jade Smart Cloud account when they are purchased so there is no need for the user to do any device pairing actions.

Key Benefits:

• Data integrity - Data is encrypted during LoRa transfers to protect against eavesdropping, data tampering, and transfer errors.
• Time synchronization - CA10 automatically synchronizes with Network Time Protocol (NTP) servers over the Internet.
• Reliability - If a data logger has a connection problem, it will automatically connect to another available nearby access point in the system. At least two access points with free capacity are needed for failover to function.

For more information, please see Data Sheet
