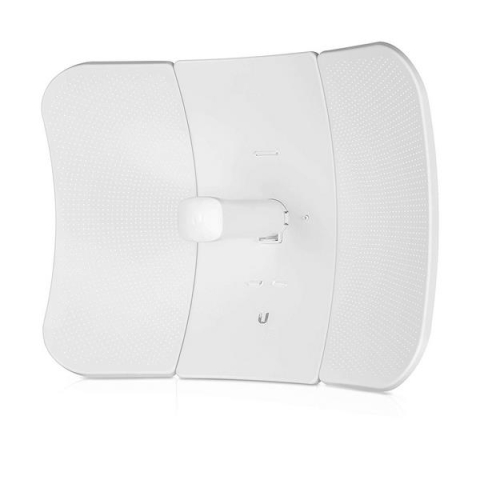

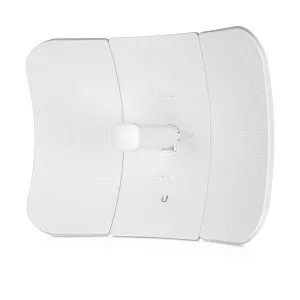

Ubiquiti LBE-5AC-LR-US LiteBeam 5 AC Long Range Access Point with 26 dBi Gain

The LiteBeam 5 AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range: 24V ± 10%
• Gain 26 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs MIPS 74Kc
• Memory 64 MB DDR2
• LEDs Power, Ethernet
• Channel Sizes
• PtP Mode: 10/20/30/40/50/60/80 MHz
• PtMP Mode: 10/20/30/40 MHz
• Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
• Mounting Pole-Mounting Kit (Included)
• Wind Loading 550 N at 200 km/h (123.6 lbf at 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection ± 24 kV Contact / Air
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Non-condensing
• Certifications CE, FCC, IC

Included:

• Antenna Feed
• Center Reflector Panel
• Side Reflector Panels (Qty. 2)
• Mounting Bracket
• Feed Receiver
• Pivot Panels (Qty. 2)
• M4 SEM Screws (Qty. 8)
• M8 SEM Screws (Qty. 4)
• Metal Straps (Qty. 3)
• Gigabit PoE (24V, 0.3A) with Mounting Bracket
• Power Cord
