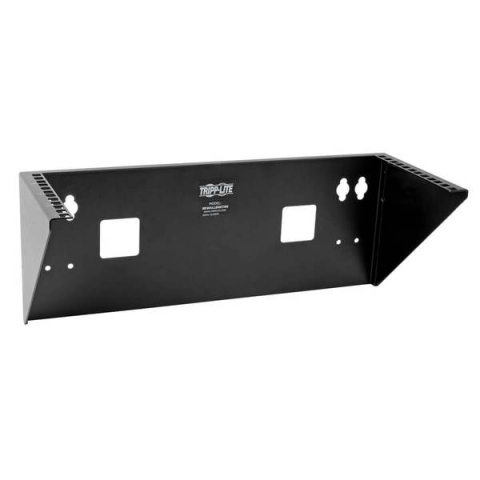

Tripp-Lite SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket

Highlights

4U wall-mount bracket allows vertical installation of a 4U rack-mount device up to 175 lb.

• 19-inch wall-mount rack bracket with maximum load capacity of 175 lbs (79.4 kgs)
• Provides open, unrestricted access to equipment and cabling
• Made from cold-rolled steel with black powder-coated finish
• Equipment-mounting hardware included
• Compatible with most EIA-standard 19 in. 2-post rack equipment

Features

4U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office

• Recommended for home offices and small businesses with no room for standard 19 in. rack
• Provides open, unrestricted access to equipment and cabling
• Maximum load capacity of 175 lbs (79.4 kgs)
• Cold-rolled steel construction with black powder-coated finish designed for long life
• Ships fully assembled for quick installation

Attaches to the Wall with User-Supplied Hardware

• Wall-mounting holes spaced 16 in. apart for standard wall stud placement
• Also mounts horizontally beneath a desk or workbench
• Component hangs flush against the wall for unrestricted out-of-the-way access

Compatible with EIA-Standard 19 in. 2-Post Rack Equipment

• Hardware included for mounting 4U rack equipment
• Rails support square-hole mounting

Package Includes

• SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket
• (12) M6 screws
• (12) M6 cup washers
• (12) M6 cage nuts
• Installation guide
