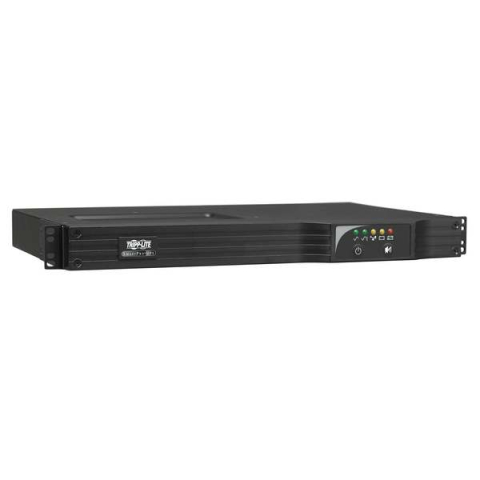

Tripp-Lite SMART750RM1UN SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS 1U Rack/Vertical Pre-Installed WEBCARDLX Network Interface USB DB9

SMART750RM1U 750VA/.75kVA/600W line-interactive sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/vertical configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line-interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in data centers, computer rooms and network closets.

Features

• SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS
• 1U rack/vertical compatible form factor
• Included mounting brackets support 2 and 4-post rack-mount installation; Optional 4POSTRAILKIT1U is available for additional support
• NEMA 5-15P input; 6 5-15R output receptacles
• Installed depth of only 16.75 in. / 42.5cm
• Sine wave output in both AC and battery backup modes
• Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
• Full load efficiency rating of 98% saves energy and ensures cool operating temperatures
• Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
• Network interfaces support communications via built-in USB, DB9 serial / contact-closure and pre-installed WEBCARDLX network management card
• WEBCARDLX interface allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH or Command Line
• Reduce Service Calls with Auto Probe Autonomous Device Management. The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the PowerAlert Network Shutdown Agent (PANSA)
• Optional E2 sensors enable site monitoring of temperature, humidity and contact-closure status
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and macOS
• Intelligent battery management system extends battery life
• 3 stage metered LEDs offer current monitoring and battery charge level
• Mains power and voltage regulation LEDs offer at-a-glance power status information
• Front panel switches support self-test and alarm cancel functions
• Field replaceable, hot-swappable internal UPS batteries

Package Includes

• SMART750RM1U with Pre-installed WEBCARDLX network interface
• Mounting hardware
• USB, DB9 and EPO Cabling
• Instruction manual

For more information, please see Data Sheet
