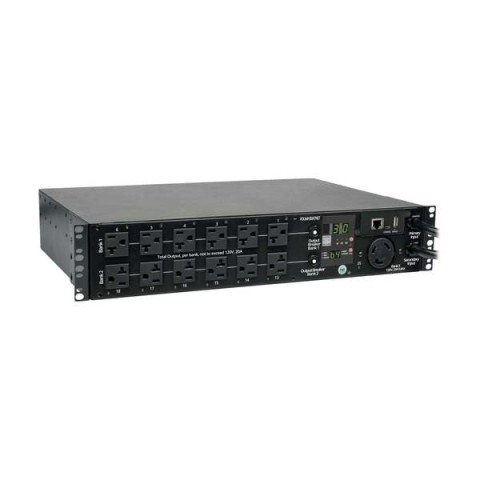

Tripp-Lite PDUMH30ATNET 2.9kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA

Features

• 120V 30A Power Distribution Unit / rack PDU (rPDU) with Auto-Transfer Switch (ATS) and Switched outlets (Agency de-rated to 24A)
• ATS features provide redundant power for critical network equipment with a single input power cord
• Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface
• Visual meter reports output amp and kW power consumption, plus voltage and temperature/humidity data with optional EnviroSense2 sensor
• 25 switched outlets (24 5-15/20R & 1 L5-30R)
• 2U horizontal rack-mount form factor; 11.9 in. / 30.2cm depth
• Set of two 10-ft. / (3.05 m) NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• Highly reliable solid-state switching enables fast 1-5 millisecond trasfer between primary and secondary inputs
• ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to SmartOnline series)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously
• Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized
• Front panel LEDs confirm power availability on both input lines
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• ATS / Switched PDU with two L5-30P inputs
• Installable 2U mounting brackets
• Operating manual

For more information, please see Data Sheet
