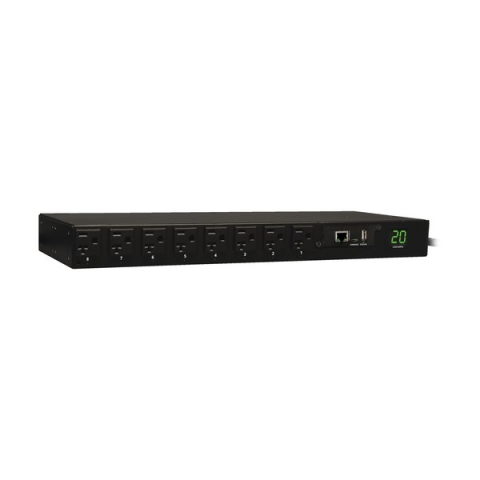

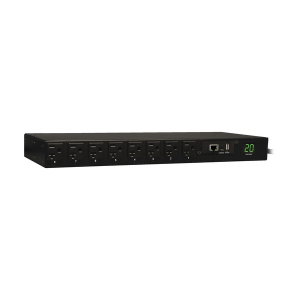

Tripp-Lite PDUMH20NET 1.9kW Single-Phase Switched PDU - LX Interface 120V Outlets (16 5-15/20R) L5-20P/5-20P Input 12 ft. (3.66 m) Cord 1U Rack-Mount

Features

• 20A 120V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (Agency derated to 16A continuous)
• Attached NEMA L5-20P input with NEMA 5-20P plug adapter, 12 ft. / 3.6m input cable
• 1U horizontal rackmount form factor
• 16 switched NEMA 5-15/20R outlets (8 front / 8 rear)
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
• Network interface provides PDU control and data regarding input voltage and total output load level in amps
• Digital display continuously reports total output load level in amps
• Supports user-specified alarm notification thresholds
• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing
• Real-time clock backup maintains the time of day and date even if the PDU is unpowered
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, NTP protocols
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
• Mounting ears are reversible for front or rear facing rackmount installation
• Included cord retention brackets
• Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Package Includes

• PDU with attached L5-20P power cord and WEBCARDLX network interface
• L5-20R-to-5-20P plug adapter
• 1U mounting brackets
• Configuration cable
• User manual

For more information, please see Data Sheet
