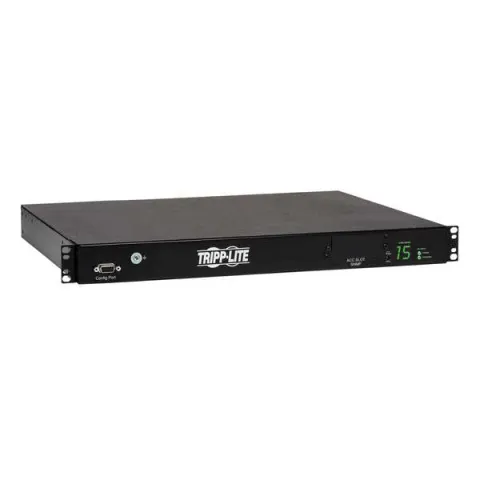

Tripp-Lite PDUMH15HVAT 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA

The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V Local Metered Automatic Transfer Switch / ATS PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.

Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in slot supports the optional WEBCARDLX (sold separate), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.

Primary and Secondary Inputs for Power Redundancy

• Enables redundant power for network devices with non-redundant power supply configurations
• Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
• 10 C13 outlets

Automatic Transfer Switching

• Dynamic solid-state (TRIAC) automatic transfer switching
• Switches to secondary power source if primary source fails or becomes unstable
• 2-5 ms transfer time ensures uninterrupted operation of connected equipment
• Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

Digital Load Meter

• Easy-to-read ammeter displays total current used by connected equipment

LED Indicators

• Individual LEDs display outlet on/off status and input power status on primary and secondary inputs

Advanced Network Monitoring Options

• Built-in card slot accommodates SNMPWEBCARD and WEBCARDLX accessories (sold separately)
• Optional cards create a switched rack PDU (rPDU) by allowing remote access for power monitoring, configuration, outlet control and notification via web browser, SSH, telnet or SNMP

Mounts Horizontally in 1U of Rack Space

• Compatible with EIA-standard 19 in. racks

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDUMH15HVAT TAA-Compliant 2-2.4kW Single-Phase ATS/Local Metered PDU
• (10) C14 plug lock inserts
• (2) C13 to C14 power cords, 3.6 m (11.8 ft.)
• Rack mounting hardware
• (6) Screws
• Owner's manual

For more information, please see Data Sheet
