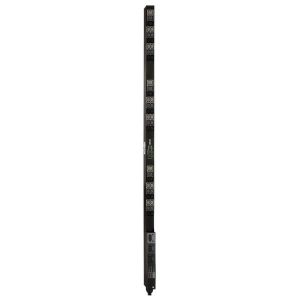

Tripp-Lite PDU3MV6L2130A 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. NEMA L21-30P Input connection, TAA Compliant

Highlights

• Local Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
• Reports voltage and load per-phase via set of 3 digital current displays
• NEMA L21-30P (3P+N+E) 208V 3 phase input, 6-ft. (1.83 m) line cord
• 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves
• Toolless button-mount installation, TAA Compliant

Features

• 8.6kW 3 phase 208V Local Metered Power Distribution Unit / rack PDU (rPDU)
• Set of 3 built-in current meters continuously report load current in amps for all 3 output phases
• Attached NEMA L21-30P (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
• 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
• 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
• Included cord retention sleeves keep vital network equipment plugged in and continuously powered
• Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
• TAA Compliant

Package Includes

• Local Metered PDU with pre-installed mounting buttons
• Cord retention sleeves (36 C14, 9 C19)
• Spare installation buttons (2 9mm / 4 6mm)
• Rack mounting brackets
• Owner's manual
