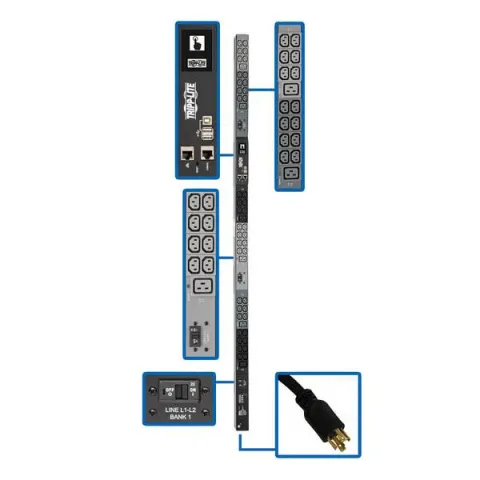

Tripp-Lite PDU3EVN6L1530B 10kW 200-240V 3PH Monitored PDU LX Interface Gigabit 48 Outlets L15-30P LCD 1.8 m Cord 0U 1.8 m Height TAA

The PDU3EVN6L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, this PDU features 42 C13 and 6 C19 receptacles with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 6-ft. (1.83 m) cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions.

Distributes and Monitors Network-Grade AC Power

• 10kW 200-240V monitored rack PDU (rPDU) with 3-phase input
• NEMA L15-30P plug with 6-ft. (1.83 m) cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

48 Outlets Distribute AC Power

• 42 C13 and 6 C19 split into 3 separately breakered load banks
• Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD

• Reports network data, including IP address, input current level per phase and output current per load bank with ±1% billing-grade accuracy
• Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
• Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In GbE-Capable LX Interface

• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

Broad Communications Compatibility

• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDU3EVN6G30B 10kW 3-Phase Monitored PDU
• Configuration cable
• (48) Plug-lock insert sleeves
• PDUMVROTATEBRKT mounting bracket accessory
• Rack-mounting hardware
• Owner's manual

For more information, please see Data Sheet
