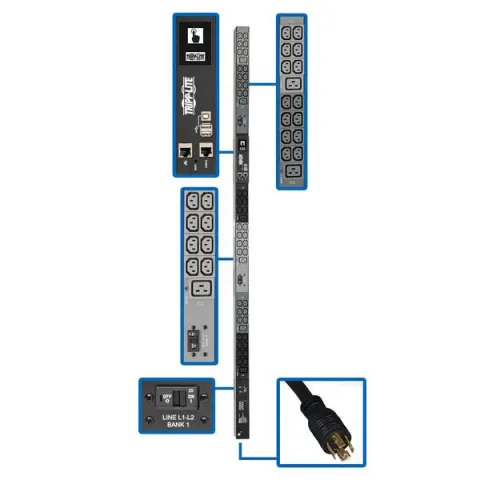

Tripp-Lite PDU3EVN10L2130B 10kW 200-240V 3PH Monitored PDU - LX Interface, Gigabit, 48 Outlets, NEMA L21-30P, LCD, 3 m Cord, 0U 1.8 m Height, TAA

Highlights

10kW 3-phase PDU with multifunction touchscreen LCD distributes AC power in an IT environment and remotely monitors load levels to prevent potentially costly overloads.

• 10kW 200-240V 3-phase Gigabit Ethernet-capable 0U monitored PDU
• 3 m power cord with NEMA L21-30P input cord
• Touchscreen LCD with mobile access option via QR code
• 42 C13 and 6 C19 receptacles with plug-lock inserts
• Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management

Features

Distributes and Monitors Network-Grade AC Power

• 10kW 200-240V monitored rack PDU (rPDU) with 3-phase input
• NEMA L21-30P plug with 10-ft. (3.05 m) cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

Pre-Installed GbE-Capable Network Interface Offers 24/7 Remote Access for Monitoring and Control

• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

48 Receptacles Distribute AC Power

• 42 C13 and 6 C19 outlets split into 3 separately breakered load banks
• Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD

• Reports network data, including IP address, input current level per phase and output current per load bank with ±1% billing-grade accuracy
• Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials
• Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device

Broad Communications Compatibility

• Supports automatic and manual assignment of IP address
• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

TAA-Compliant for GSA Schedule Purchases

• Complies with the Federal Trade Agreements Act (TAA)
• Eligible for GSA (General Services Administration) Schedule and other federal procurement contracts

Package Includes

• PDU3EVN10L2130B 10kW 3-Phase Monitored PDU
• Built-in LX Platform interface
• Configuration cable
• (48) Plug-lock insert sleeves
• Rack-mounting hardware
• PDUMVROTATEBRKT mounting bracket accessory
• Owner's manual
