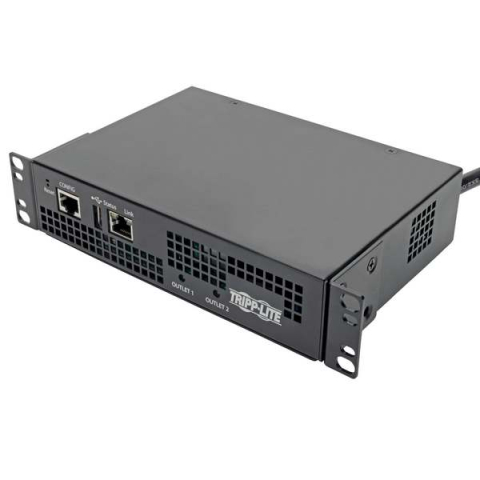

Tripp-Lite PDU15NETLX 1.4kW 120V Single-Phase Switched Mini PDU - LX Platform Interface, NEMA 5-15P 6 ft. (1.83 m) Cord, 0U, TAA

Highlights

Switched PDU distributes network-grade single-phase power to connected devices in small 1- or 2-outlet installations.

• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• 2 switched NEMA 5-15R outlets can be remotely rebooted, locked or shut down
• NEMA 5-15P input with 6-ft. (1.83 m) cord connects to mains power, generator or UPS system
• Mounts on wall, under counter or in 0U of rack space using included brackets
• Ideal low-cost option for small-scale installations requiring no more than 2 outlets

Features

Switched PDU Provides Advanced Network Control and Remote Power Monitoring

This 0U PDU is an ideal low-cost option for small-scale network configurations where only one or two outlets are needed. It features two NEMA 5-15R individually switched outlets, which can be remotely controlled to turn on, turn off, recycle or lock out power to unresponsive devices. Front-panel LEDs indicate each outlet's on/off status.

Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control

The built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. PADM20's Auto Probe feature allows a PDU with switched loads to automatically reboot devices if a network communication failure is detected. This preserves uptime and minimizes the time and expense associated with on-site support.

Easy Connection to an AC Power Source

A 6-ft. (1.83 m) power cord with NEMA 5-15P plug connects the PDU15NETLX 0U PDU to a compatible AC power source, generator or protected UPS.

Flexible Installation Options

The switched rack PDU (rPDU) mounts vertically in 0U of rack space, on a wall or under a counter using the included mounting brackets and user-supplied hardware. Its half-width rack-mount form factor allows you to place it on a shelf or desktop.

TAA-Compliant for GSA Schedule Purchases

The PDU15NETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Package Includes

• PDU15NETLX 1.4kW 120V Single-Phase Switched Mini PDU
• (2) Mounting brackets w/screws
• Owner's manual
