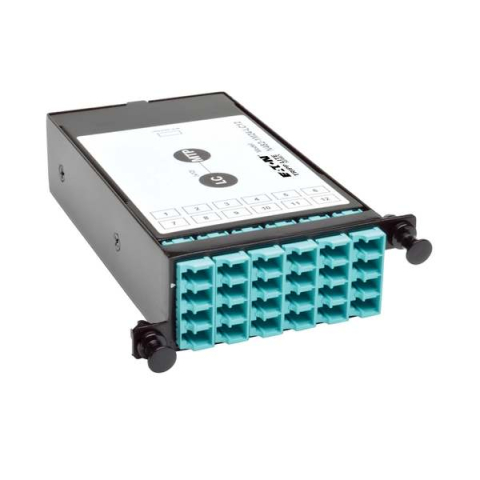

Tripp-Lite N482-1M24-LC12 100Gb/120Gb to 10Gb Breakout Cassette 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

The N482-1M24-LC12 is a high-density 100/120 Gb to 10 Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.

Features

• High Density Fiber Cassette for use with N482-01U and N482-02U High Density Fiber Enclosure Panels
• 100/120Gb to 10 Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber, OM4 MTP/MPO connection
• 24-Fiber MTP port designed for 100 GbASE-SR10, CFP, CXP, Parallel Optics connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with cables, such as the N820-, N821- and N846-Series cables
• Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required
• Factory terminated connectors reduce the time and labor required of field connector terminations
• Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Constructed of heavy-duty steel housing

System Requirements

• 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with N820-, N821- and N846-Series cables

Package Includes

• N482-1M24-LC12-100/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO to (x12) LC
• Quick Start Guide

For more information, please see Data Sheet
