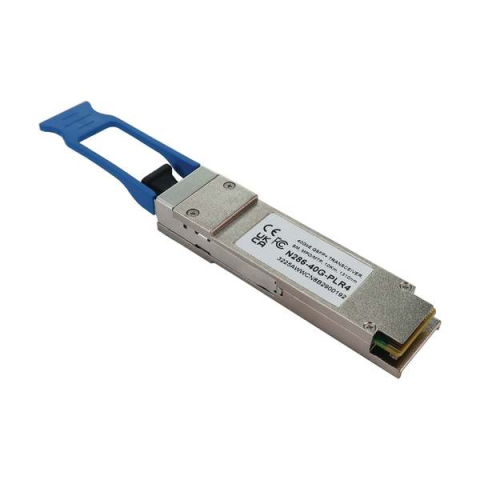

Tripp-Lite N286-40G-PLR4 Cisco-Compatible QSFP+ Transceiver 40GBase-PLR4 Singlemode MPO/MTP 1310 nm 10 km (6.2 mi.)

Connects a singlemode Gigabit Ethernet fiber cable to a Cisco switch or server's QSFP+ port.

QSFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This QSFP+ transceiver allows you to connect a singlemode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1260 to 1360 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco QSFP-4X10G-LR-S Transceiver Module
The MSA-compliant N286-40G-PLR4 functions just like the equivalent Cisco QSFP-4X10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-4X10G-LR-S.

Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MPO/MTP connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.

System Requirements

Cisco or other compatible network router, server or switch

Package Includes

• N286-40G-PLR4 QSFP+ Transceiver

For more information, please see Data Sheet
