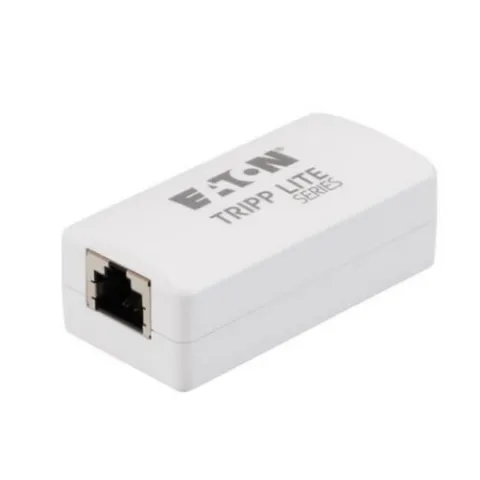

Tripp-Lite N234-MI-BX Medical-Grade Ethernet Network Isolator - RJ45 Feedthrough for Patient Care Vicinities, IEC 60601-1, TAA

Features:

• Isolates harmful leakage currents on a data network to protect patients and equipment
• Meets vigorous IEC 60601-1 2MOPP standards for use in patient care vicinities
• Compliant with a wide range of medical equipment and Cat6 cables
• Plug-and-play operation requires no additional software or external power supply
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Isolates medical devices connected to an Ethernet network to protect patients from dangerous leakage currents.

The N234-MI-BX connects medical equipment to a non-medical appliance or system, such as a single computer or a local Ethernet network. It protects staff and patients from dangerous leakage currents that can travel through standard copper Ethernet cable without affecting the flow or speed of 10G data.

This medical-grade isolator is compatible with patient monitoring systems, diagnostic imaging equipment, infusion pumps, medical PCs and laboratory analyzers. It can also be used with network switches, servers and other IT infrastructure in healthcare facilities that require galvanic isolation between medical and non-medical networks. Its RJ45 ports connect to any standard Cat6 Ethernet cable.

This Ethernet network isolator has two RJ45 ports and acts as a coupler, joining two tested and approved Cat6 cables to complete the connection between compatible medical equipment and a computer or data network in a patient care vicinity. Because the cables are easily removed from the ports, you can replace a failed cable without replacing the isolator. Completely plug and play, this RJ45 isolator does not require any software or an external power supply.

This medical-grade isolator is recommended for interfacing between medical and non-medical equipment where no essential performance is required. The suitability of use and isolation shall be determined in the end use application and evaluation. It is also ideal for connecting a clinic or practice's network to the PC of a prolonged EEG system or connecting an analysis computer to a doctor's consulting room with an EMG measuring station.

The N234-MI-BX complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical network isolator can be used in patient care vicinities. For example, you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system.

The N234-MI-BX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

For more information, please see Data Sheet
