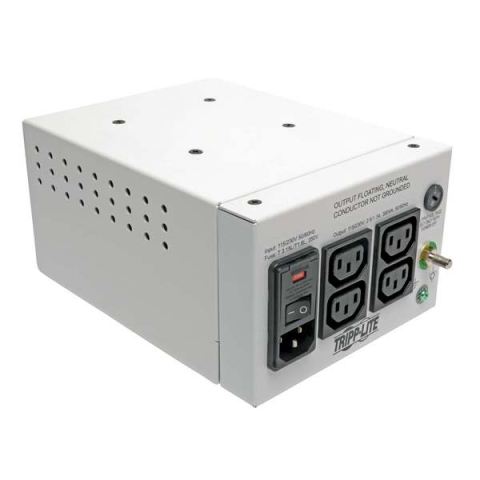

Tripp-Lite IS300HGDV Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets

Highlights

Transformer with full CAN/ES/IEC/EN 60601-1 listing offers line isolation, step-up and step-down capabilities, and continuous noise filtering in protecting medical electronic equipment used in patient-care vicinities.

• Protects sensitive equipment from EMI/RFI line noise and surges
• Cumulative leakage current less than 50 µA
• Automatically shuts down all outlets in case of overload
• Offers complete isolation from input AC mains power
• Ideal for use in any industrial, network or medical environment

Package Includes:

• IS300HGDV Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer
• (2) Fuse sets (115V and 230V operation)
• Input/output cable selector data sheet
• Owner's manual

Features:

Full CAN/ES/IEC/EN 60601-1 Medical-Grade Listing with C14 Inlet and 4 C13 Outlets

• Ideal for protecting sensitive electronic equipment in patient-care vicinities
• Reduces cumulative leakage current of Isolator and connected equipment to levels less than 50 µA
• Inexpensive alternative to dedicated circuits and site electrical upgrades
• Rugged all-metal housing designed to withstand frequent use in busy environments
• Requires a C13 AC input cord with country specific plug (sold separately)

Selectable 115/230V Input/Output Voltage Suitable for Most Applications

• Step-up, step-down or pass-through voltage operation (input frequency always equals output frequency)
• Internal low-impedance toroidal isolation transformer with Faraday shield offers 100% isolation from mains AC power line
• Automatically shuts down all outlets in case of overload
• Ships ready for placement in any industrial, medical, office, network or audio/video environment

Protects Connected Equipment from Dangerous Spikes, Surges and Line Noise

• Line isolation, continuous noise filtering and 240 joules of AC surge protection
• Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
• Floating AC output prevents noise coupling from noisy ground circuits
• Reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode

For more information, please see DataSheet
