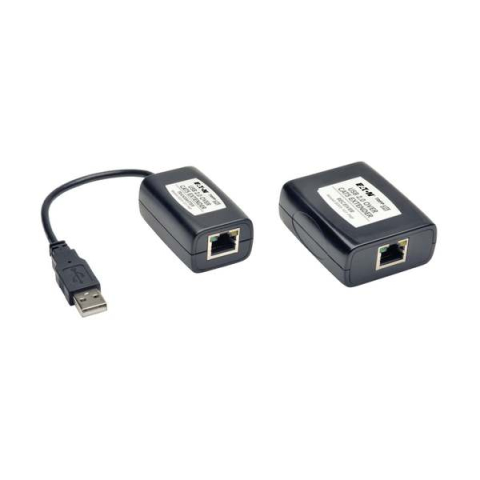

Tripp-Lite B203-101-PNP 1-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit, Transmitter & Receiver, USB up to 164.04 ft. (50M), TAA

Highlights

Send data from a USB-equipped computer to a USB 2.0 peripheral up to 164 ft. away over user-supplied Cat5/Cat6 cable. No software or drivers are required. Kit is useful for devices or areas that lack network conductivity.

• Extends USB data transfer up to 164 ft. over Cat5/Cat6 cable
• Includes a transmitter with USB cable and a 1-port receiver
• Supports data transfer rates up to 480 Mbps
• Plug-and-play functionality; no software or drivers required
• Works with Windows®, Mac® and Chromebook™ computers

Package Includes:

• B203-101-PNP local transmitter with built-in USB cable
• B203-101-PNP 1-port remote receiver
• External Power Supply with NEMA 1-15P Plug for receiver (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A, 4.5-ft. (1.37 m)
• Owner's Manual

Features:

Long-Distance Data Transfer to 1 Device-Up to 164-ft. (50 m) from the Source

• Send data to a USB 2.0 device located up to 164-ft. (50 m) from the source
• USB signals travel over a single user-supplied Cat5/Cat6 cable
• Includes transmitter with built-in USB-A cable and a 1-port receiver
• Supports data transfer rates up to 480 Mbps

Greater Distance over Cat5/Cat6 Cable Provides Greater Flexibility

• Cat5/Cat6 cabling exceeds the 16-ft. (4.9 m) distance limitation of USB cables
• Allows connection to devices that lack network connectivity in areas beyond the reach of standard USB cables
• Makes connections in areas without network availability
• Allows source to be in a secure location, separate from peripherals
• Cat5/Cat6 cabling is cost-effective and readily available
• For best results, use solid-conductor Cat5/Cat6 UTP cable, such as N202-Series cable

Convenient Plug-and-Play Installation

• Plug-and-play functionality; no software or drivers required
• Built-in 1-ft. (0.3 m) USB-A cable connects source and transmitter
• User-supplied Cat5/Cat6 cable connects transmitter and receiver
• Receiver unit has an external power supply

Widely Compatible

• Compatible with all major operating systems (Windows and Mac)
• Backward compatible with USB 1.1 devices (at USB 1.1 speeds)

TAA-Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
