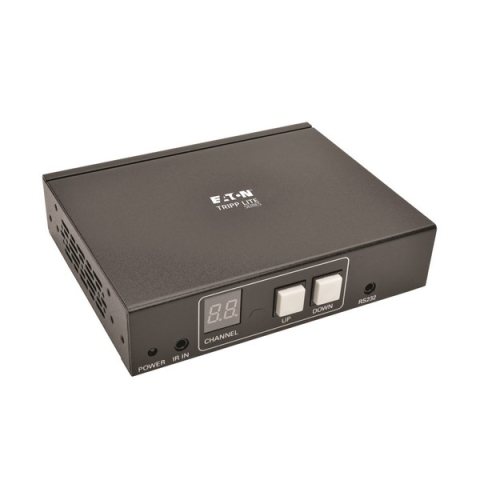

Tripp-Lite B160-100-DPSI DisplayPort over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

Highlights

Receives IP-based audio + video signal transmitted point-to-point from a source 328 ft. away via Cat5e/6 cable or through a dedicated Ethernet network switch.

• Compatible with B160-Series A/V over IP transmitters
• Display video from any source, analog or digital
• Supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz
• Scales up to multi-in, multi-out installation with network switch
• Plug and play-no software or drivers required

Package Includes:

• Receiver unit
• External power supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 2A)
• Plug adapters for U.S., U.K., Europe and Australia
• IR-In cable
• 3.5 mm to DB9 adapter cable (M/M)
• Mounting hardware
• Owner's manual

Features:

DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling

• Receives IP-based audio/video transmitted point-to-point from a source 328 ft. away
• Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers

• Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
• IGMP-enabled switches allow centralized control over which sources show on which displays
• Displays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitors

Enhanced Technical Features

• Supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz
• Uses H.264 video compression standard
• Transmits on 20-60 kHz IR frequency
• Extends IR control signals that control a source from a remote display
• Supports RS-232 serial baud rates up to 57600 Bps
• HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter

Plug-and-Play Functionality

• No software or drivers required
• Hardware included for mounting on wall, rack or pole
• Compatible with all B160-Series A/V over IP transmitters

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
