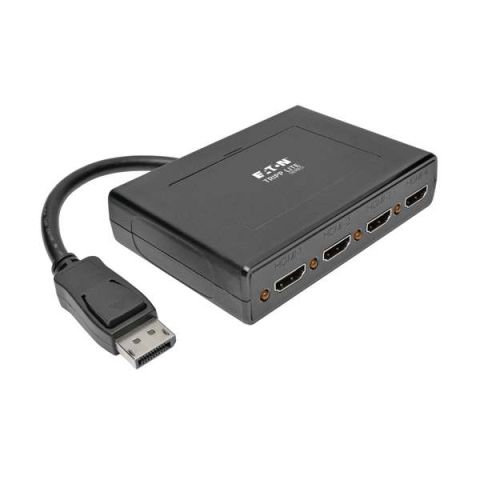

Tripp-Lite B156-004-HD-V2 4-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA

Highlights

Displays the same image on 4 HDMI monitors, extends the desktop across all four, or combines all into one large monitor. Ideal for digital signage in schools, churches, conference rooms, trade shows and retail outlets.

• Supports UHD video resolutions up to 4K at 60Hz (3840 x 2160)
• Built-in 6 in. cable connects directly to DisplayPort source
• Supports up to 48-bit Deep Color (16 bits per channel)
• Works with all operating systems
• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound

Package Includes:

• B156-004-HD-V2 4-Port DisplayPort 1.2 to HDMI MST Hub
• External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
• Owner's manual

Features:

Connects Up to 4 HDMI Monitors to Your Computer's DisplayPort Output

• Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
• Displays same image on 4 monitors simultaneously in mirror mode
• Extends desktop across 4 monitors in extended mode
• Combines 4 monitors into one large monitor in video wall mode
• Built-in 6 in. cable connects directly to DisplayPort source
• LEDs indicate when monitors are receiving a signal

Meets the Latest Performance Standards

• Supports HD video resolutions up to 1920 x 1080 per monitor
• Supports expanded resolutions in video wall mode, such as 4K at 60Hz (3840 x 2160) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
• Supports HDCP, EDID and DDC
• Supports 48-bit Deep Color (16 bits per channel)
• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

Easy to Use Almost Anywhere

• Works with all operating systems
• Plug and play-no software or drivers required

TAA Compliant

• Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
