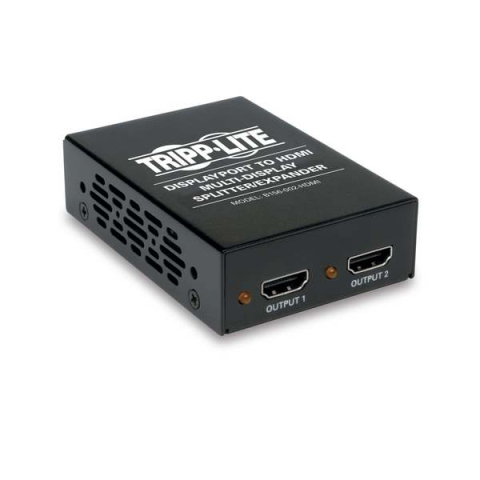

Tripp-Lite B156-002-HDMI 2-Port DisplayPort to HDMI Multi-Monitor Splitter MST Hub, 4K UHD, DP1.2, TAA

Highlights

Ideal for digital signage at schools, airports and other public venues that require a DisplayPort video signal to appear on two separate HDMI monitors or expanded across both monitors as a video wall.

• Compliant with DisplayPort 1.2
• Splits or expands a DisplayPort audio/video signal on two HDMI monitors
• Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one
• Supports Ultra High Definition (UHD) video resolutions up to 4K at 30Hz (3840 x 2160) - see System Requirements
• Supports up to 48-bit Deep Color (16 bits per channel)
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes:

• B156-002-HDMI DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub
• Mounting Hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)

Features:

Splitting, Extending, Multi-Display

• Splits or expands a DisplayPort audio/video signal on two HDMI monitors
• Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor
• Supports both 4K (3840 x 2160 at 30 Hz) UHD video and standard 1080p (1920x1080 at 60 Hz) high-definition video

Video Standards and Protocols

• Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840 x 2160 at 30 Hz
• Complies with HDCP, EDID and DDC
• Compatible with DisplayPort 1.2
• Compatible with Apple® Thunderbolt connectors

Installation

• Plug-and-play; no software or drivers required
• Easy to install; connect the DisplayPort video source to the hub's input port, connect the external power supply and finally connect the two HDMI monitors to the output ports

Mounting Options

• Wall-, rack- or pole-mounting; all mounting hardware is included

TAA-Compliant for GSA Schedule Purchases

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
