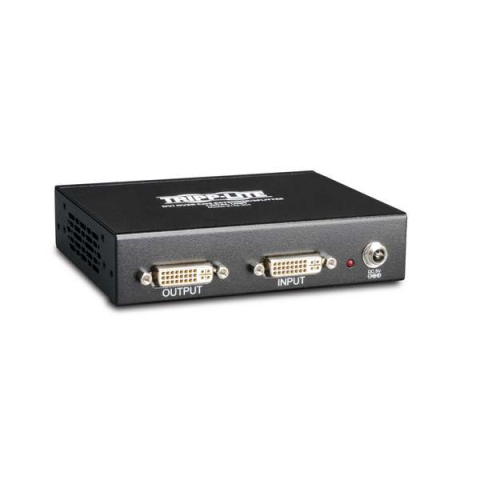

Tripp-Lite B140-004 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

Highlights

Transmit a DVI-D single-link signal to 4 monitors up to 200 ft. away using a single Cat5/6 Ethernet cable.

• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60 Hz
• For longer distances - Use a B140-1A0 active receiver unit to extend a 1920 x 1080 at 60 Hz signal up to 150 ft. (45.72 m), or a 1024 x 768 at 60 Hz signal up to 200 ft. (61 m)
• For shorter distances - Use a B140-1P0 passive receiver unit to extend a 1920 x 1080 at 60 Hz signal up to 50 ft. (15.24 m), or a 1024 x 768 at 60 Hz signal up to 100 ft. (30.5 m)
• Use 24 AWG, Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Compatible with all operating systems
• Plug and play, no software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes:

• B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
• 1-ft. (0.31 m) DVI daisychain cable
• Mounting hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual

Features:

• Transmit a DVI-D Single-Link signal to four monitors up to 200-ft. (61 m) away using a single Cat5e/6 patch cable
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60 Hz
• For longer distances - Use a B140-1A0 active receiver unit to extend a 1920 x 1080 at 60 Hz signal up to 150-ft. (45.7 m), or a 1024 x 768 at 60 Hz signal up to 200-ft. (61 m)
• For shorter distances - Use a B140-1P0 passive receiver unit to extend a 1920 x 1080 at 60 Hz signal up to 50 ft., or a 1024 x 768 at 60 Hz signal up to 100-ft. (30.5 m)
• Use 24 AWG Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local).
• Further expand the range and number of monitors by using a B140-110 repeater unit
• Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel)
• A 1920 x 1080 at 60 Hz signal can be extended up to 125-ft. (38.1 m) from each repeater to the next unit in the channel, or a 1024 x 768 at 60 Hz signal can be extended up to 175-ft. (53.3 m)
• HDCP compatible
• Compatible with all operating systems
• Plug and play; no software or drivers required
• Mounting hardware is included that allows the unit to be rack-mounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a B132-004-RB 19-inch rack-mount bracket.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
