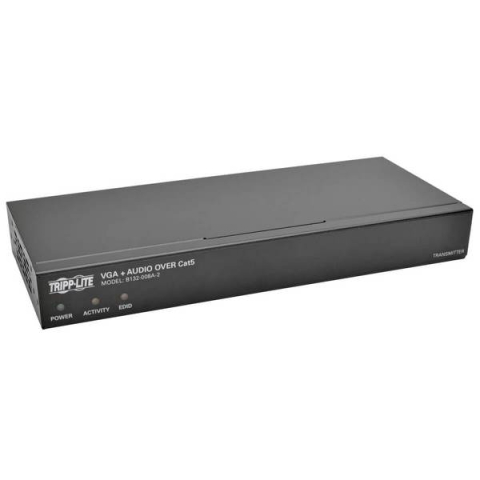

Tripp-Lite B132-008A-2 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Highlights

Works with Tripp Lite's B132-Series receivers to transmit a VGA + audio signal to 9 sets of displays and speakers (8 remote, 1 local) up to 1,000 ft. away. Ideal for digital signs, trade shows and classrooms.

• Requires remote receivers (sold separately)
• Extends 1024 x 768 at 60 Hz audio/video signal up to 1,000 ft.
• Extends 1920 x 1440 at 60 Hz audio/video signal up to 500 ft.
• Daisy-chain up to 6 units to extend signal to 49 displays
• Plug and play-no software or drivers to install

Package Includes:

• B132-008A-2 8-Port VGA + Audio over Cat5/6 Extender Splitter
• External power supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
• VGA + audio daisy-chain cable, 1 ft.
• Mounting hardware
• Owner's manual

Features:

Transmits a Single High-Definition VGA + Audio Signal to 9 Sets of Displays/Speakers

• Ideal for applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source
• Splits one VGA + audio signal into 9 separate signals (8 remote, 1 local)
• B132-100A or B132-100A-WP-1 remote receiver required for each remote signal

Daisy-Chain Units to Reach More Remote Displays

• Daisy-chain up to 6 units to extend the original audio/video signal to as many as 49 displays (48 remote, 1 local)
• Connects to next link in chain with one Cat5/Cat6 cable, such as 24 AWG solid-wire N022-01K-GY (Cat5e) or N222-01K-GY (Cat6) cable
• Add up to 3 B132-110A remote repeaters to each channel to extend signal range or add displays

Extends Signals Up to 1,000 ft.

• Extends a 1920 x 1440 (60 Hz) signal up to 500 ft. away from the audio/video source
• Extends a 1024 x 768 (60 Hz) signal up to 1,000 ft. away from the audio/video source
• Supports high-quality audio

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install
• Connects quickly to source and displays with VGA cable, such as P504-Series
• LEDs indicate at a glance when the unit is receiving power and a VGA signal from the source
• Included mounting hardware lets you install the unit on a wall, rack or pole

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
