Tripp-Lite B126-1P1M-U-POC HDMI Over Cat5/6 Extender Kit Transmitter/Receiver for Video/Audio PoC Up to 100 ft. (30 m) TAA

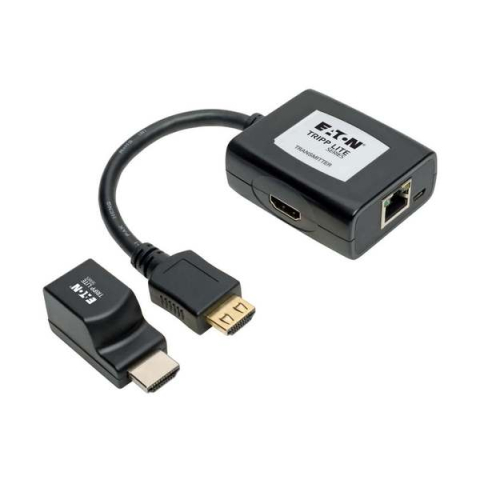

The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (P568-Series) connects the audio/video source, such as a Blu-ray player, and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results, use 24 AWG solid-wire Cat6 cable, such as N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet (15.2 meters) and a 1080i signal up to 100 feet (30.5 meters). In addition to crystal-clear video, the B126-1P1M-U-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Extends a High-Definition HDMI Audio/Video Signal

• Transmitter extends HDMI A/V signal to low-profile receiver
• Recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other HDMI A/V applications
• Extends a 1080p ( at 60 Hz) signal up to 50-ft. (15.2 m) from source
• Extends a 1080i signal up to 100-ft. (30.5 m) from source
• Supports 7.1-channel surround sound (multi-channel or PCM) audio
• HDCP and 3D compliant

Easy to Set Up and Use

• Built-in Power over Cable (PoC) technology powers the receiver
• Transmitter and receiver connect with Cat5e/6/6a cable (for best results, use N202-Series)
• Transmitter connects to source and optional local display using HDMI cable, such as P568-Series
• LEDs indicate when units are receiving power or an HDMI signal
• Plug-and-play operation with no software or drivers required

TAA-Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Source with HDMI and USB ports (if source has no USB port, a USB wall charger can be used)
• Display with HDMI port

Package Includes

• Transmitter unit
• Receiver unit
• USB Micro-B cable, 1-ft. (0.31 m)
• USB Micro-B cable, 3-ft. (0.91 m)
• Owner's manual

For more information, please see Data Sheet
