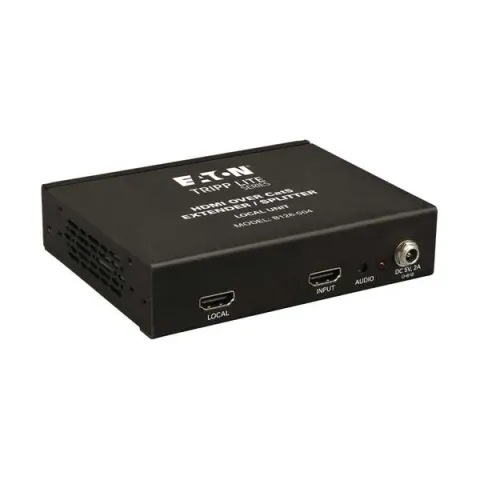

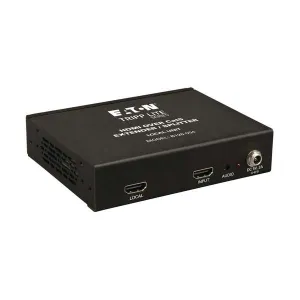

Tripp-Lite B126-004 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

Highlights

Works with Tripp Lite's B126-Series receivers to split a single HDMI signal into five separate signals (one local and four remote), each on one cable, to five projectors, monitors or televisions in a chain.

• Perfect for digital signs, trade shows and classrooms
• Can daisy-chain up to 3 units to extend signal to 13 monitors
• Works with all operating systems and HDMI video sources
• Supports stereo and 7.1-channel surround sound audio
• Includes an HDMI cable with latching connectors for a more secure connection
• Plug and play-no software or drivers to install

Package Includes:

• B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter
• HDMI daisy-chain cable with latching connectors, 12 in.
• External Power Supply (Input: 100-240V, 50/60 Hz, 1.0A; Output: 5V, 3A, 5-ft. (1.52 m)
• Mounting hardware
• Owner's Manual

Features:

Extends High-Definition Signals

• Extends a 1080i (60 Hz) signal up to 175-ft. (53.3 m), a 1080p (60 Hz) signal up to 125-ft. (38.1 m) and a 3D signal up to 100-ft. (30.5 m) with each optional B126-110 remote repeater
• Extends a 1080i (60 Hz) signal up to 200-ft. (61 m), a 1080p (60 Hz) signal up to 150-ft. (45.7 m) and a 3D signal up to 125-ft. (38.1 m) with B126-1A0 or B126-1A0-WP-1 active remote receiver
• Extends a 1080i (60 Hz) signal up to 100-ft. (30.5 m) and a 1080p (60 Hz) signal up to 50-ft. (15.2 m) with B126-1P0 or B126-1P0-WP-1 passive remote receiver
• Add up to 3 remote repeaters on each channel for maximum signal range
• Daisy-chain up to 3 units to extend the original signal to as many as 13 display monitors (1 local, 12 remote)
• Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)

Supports the Latest Video and Audio Resolutions

• Works with all operating systems and HDMI video sources
• Supports HD resolutions up to 1080p (60 Hz)
• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
• Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install
• Connects quickly to source and local monitor with HDMI cable, such as P568-Series
• LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source
• Included mounting hardware lets you install the unit on a wall, rack or pole
• Included HDMI cable with latching connectors provides a more secure conntection
• Mount up to 3 units in 1U of rack space using a B132-004-RB rack-mount bracket

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
