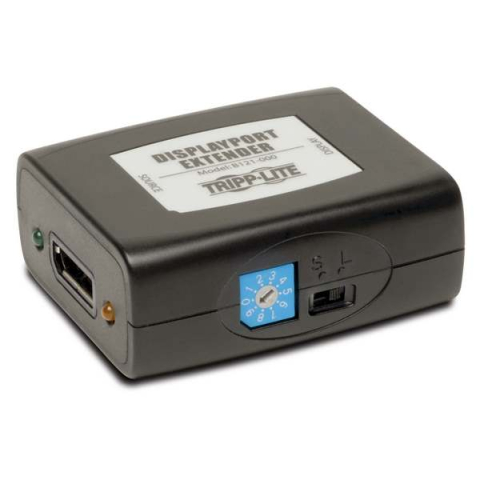

Tripp-Lite B121-000 DisplayPort Signal Booster / Extender 1080p 60Hz Up to 150 ft. (45 m) (DP F/F) TAA

The B121-000 DisplayPort Signal Extender increases the distance a DisplayPort signal can be transmitted beyond the recommended 16 feet (4.9 meters). It supports computer video resolutions up to 1920 x 1200 at 60Hz and HD resolutions up to 1080p at 60 Hz, as well as a maximum distance of 150 feet (45.7 meters) from the source. Use P580-Series DisplayPort cables in most applications. When extending a 1920 x 1200 at 60 Hz (or 1080p at 60 Hz) video signal more than 100 feet (30.5 meters), use cable made with 24 AWG wiring. Simply connect the longer cable between the source and the B121-000, and the shorter cable (16 feet or less) between the adapter and the monitor. Software or drivers are not required. Built-in equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Extend a Displayport signal up to 150-ft. (45.7 m) from the source
• Supports computer video resolutions up to 1920 x 1200 at 60 Hz, and HD resolutions up to 1080p at 60 Hz
• Use P580-Series Displayport Cables
• When extending a 1920x1200 at 60 Hz (or 1080p at 60 Hz) video signal more than 100-ft. (30.5 m), use a cable made with 24 AWG wiring
• Built-in Equalization control to adjust the video image
• HDCP compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• DisplayPort-equipped computer
• DisplayPort-equipped monitor
• For audio support, you must have a DisplayPort source that supports audio and which has it enabled

Package Includes

• B121-000 DisplayPort Signal Extender
• External power supply with 5-ft. (1.52 m) cord and NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 2A)
• Screwdriver for equalization adjustment
• Owner's manual

For more information, please see Data Sheet
