Tripp-Lite B070-016-19-IP2 NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD, 2 Remote + 1 Local User, 1U Rack-Mount

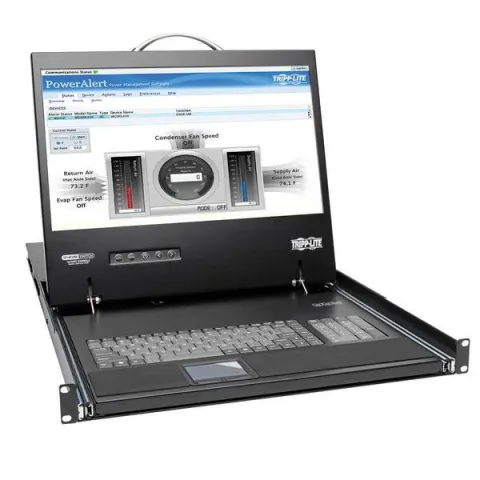

The B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.

Connect computers/servers up to 100 feet (30.5 meters) away using Cat5e/6 cabling and a compatible B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.

The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.

1U KVM switch connects up to 16 computers and/or servers and allows up to 3 users to control them simultaneously. Recommended for IT professionals who need convenient remote and rack-side access to data center components.

• 19 in. LCD supports video resolutions up to 1366 x 768
• Cat5e/6 cabling connects computers/servers up to 100-ft. (30.5 m) away
• Simultaneous support for 3 users-1 local, 2 remote
• Supports IPv4 and IPv6
• Mounts in 1U of space in EIA-standard 19 in. rack

Package Includes:

• B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
• C13 to NEMA 5-15P power cord, 6-ft. (1.83 m)
• Rack-mounting hardware
• Quick Start Guide

Features:

Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad

• Mounts in 1U of space in EIA-standard 19 in. rack
• Connects up to 16 computers/servers up to 100-ft. (30.5 m) away via Cat5e/6 cabling and B078 Series SIUs
• To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
• Fast Virtual Media KVM system: U.S. Patent #9,417,720
• BIOS-level control of any server brand and model

IP Remote Access for Fewer Trips to the Server Room

• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• Up to 3 users (1 local, 2 remote) can sign in simultaneously
• Up to 5 users can share a single session
• Supports both IPv4 and IPv6
• Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail

Simplifies IT Tasks

• Users can switch between ports via on-screen display, hotkeys or remote toolbar
• Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
• Assign individual ports to an IP PDU port to power on/off the server connected to that port
• Virtual Media allows .iso file to be mounted to target server and accessed directly
• Supports RADIUS and LDAP/S authentication
• Log tracks events on your installation

Large 19 in. LCD Screen

• Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
• DDC emulation allows for optimal output to LCD

Advanced Security Features

• Multi-level password protection-create administrator accounts with full access and user accounts with limited access
• Supports TLS 1.2 security protocol

Free NetCommander-AXS Management Software

• Access and manage all of your NetCommander IP KVM switches from one interface
• Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM settings
• Free download available at Technical Support link in right-hand column

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
