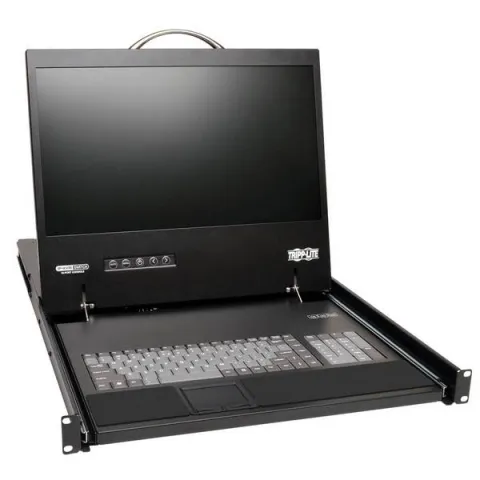

Tripp-Lite B070-008-19-IP NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount

Control up to 8 computers from virtually anywhere with one Cat5 KVM switch with integrated console. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.

• Control computers/servers locally or via LAN, WAN or Internet
• Occupies just 1U of space in a rack-mountable drawer
• Low-cost Cat5 cabling allows longer distances, reduces cable clutter
• 19" LCD screen supports video resolutions up to 1366 x 768
• Simultaneous support for 2 users - 1 local, 1 remote
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Free Management Software available to Access and Control all of your NetCommander IP KVM's (B070 and B072 IP series) from a single interface
• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

Package Includes:

• B070-008-19-IP 1U rackmount console KVM switch with 19" LCD
• C13 to 5-15P power cord
• Rackmount hardware
• CD with owner's manual
• Quick start guide

Features:

Saves Space and Money

• Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
• Mounts into 19"-wide rack, 27"-42" deep; to mount in a 2-post rack, use B019-000
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
• For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Remote access means there's no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
• Supports both IPv4 and IPv6
• Free Management Software available to Access and Control all of your NetCommander IP KVM's (B070 and B072 IP series) from a single interface

Simplifies IT Tasks

• On-screen display, hot keys and remote toolbar for easy use
• 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
• Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
• Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
• System-sent messages to SNMP server notify you of LAN failures
• Supports RADIUS and LDAP/S authentication
• Log tracks events on your installation

Large 19" LCD

• Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
• DDC emulation allows for optimal output to LCD

Advanced Security Features

• Multi-level password protection: create administrator accounts with full access and user accounts with limited access
• Supports TLS 1.2 security protocol
• You can install SSL certificates to ensure secure transactions between web servers and browsers

Expandability and Long-Lasting Reliability

• Flash-upgradeable firmware over the network
• Heavy-duty steel housing stands up to use

TAA Compliant

• Complies with the Federal Trade Agreements Act for GSA Schedule purchases

For more information, please see DataSheet
