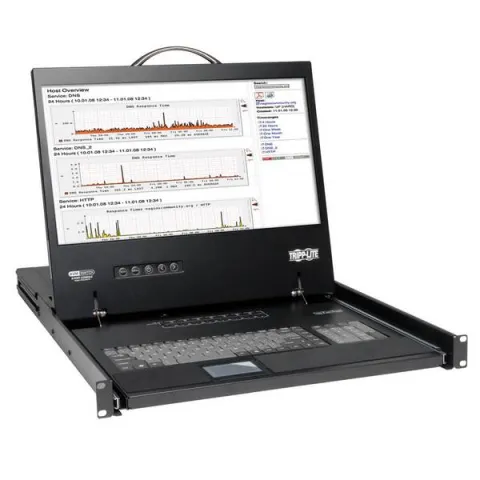

Tripp-Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD

Control up to 16 computers with a single KVM switch with integrated console, or increase the total connected computers to 256 by daisy-chaining. This KVM switch is a smart solution for space- and money-saving server control.

• Uses just 1U of space in rack-mountable drawer
• 19" LCD screen supports video resolutions up to 1366 x 768
• Simplifies IT tasks with easy switching between all 16 ports
• Password protection prevents unauthorized access
• Compatible with all operating systems
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes:

• B040-016-19 1U rackmount console KVM switch with 19" LCD
• 4 ft. HD15 to DB9 firmware upgrade cable
• 6 ft. C13 to 5-15P power cord
• External VGA port terminator
• Rackmount hardware
• CD with owner's manual
• Quick start guide

Features:

Saves Valuable Space and Money

• Combines a 16-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
• Mounts into 19"-wide rack, 27"-42" deep; can be mounted in a 2-post rack using B019-000
• Control up to 16 computers or servers from one easily accessible console - ideal when rack space is at a premium
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
• Eliminates need to buy separate costly monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

• Switch easily between the 16 ports via on-console buttons, on-screen display or keyboard hot key commands
• Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19" LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1366 x 768

Password Protection

• Single-level password security limits access to authorized users
• Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

• A port is available for connecting an external console or a B051-000 IP Remote Access Unit that will let you control your servers from virtually anywhere in the world
• Use the B040-016-19 with up to 15 B042-Series KVM switches daisy-chained to have access to up to 256 computers/servers
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is easily upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use

TAA Compliant

• Complies with the Federal Trade Agreements Act for GSA Schedule purchases

For more information, please see DataSheet
