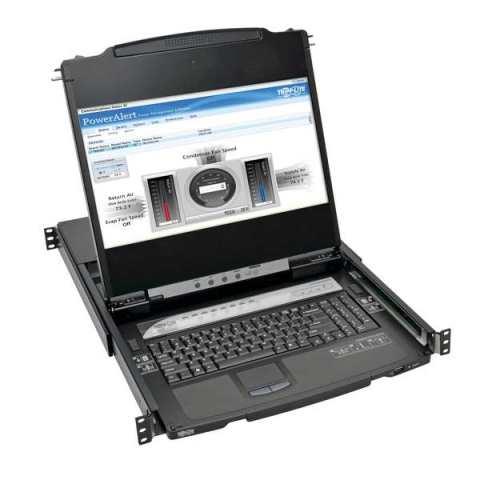

Tripp-Lite B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail

Control a network of 8 servers or computers directly from one keyboard, mouse and monitor housed in 1U of rack space. Recommended for data centers, server rooms and other environments with multiple servers.

• Control computers/servers locally or via LAN, WAN or Internet
• Occupies just 1U of space in a rack-mountable, dual-rail drawer
• Supports video resolutions up to 1920 x 1080
• Allows up to 64 authorized users and 32 concurrent remote log-ins
• Works with all major operating systems and browsers

Package Includes:

• B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch
• (2) High-speed HDMI cables, 6 ft.
• (2) USB 2.0 A/B cables, 6 ft.
• C13 to NEMA 5-15P power cord
• Owner's manual

Features:

Complete Control from Anywhere

• Combines 8-port KVM switch, 17 in. LCD screen, keyboard and touchpad to save rack space
• Built-in IP access lets you control up to 8 computers directly from the next room, next door, or the next continent via LAN, WAN or the Internet
• Supports IPv4, IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
• Windows- and Java-based applications provide access without a browser

Simplifies IT Tasks

• Switch easily between ports via on-console buttons, on-screen display or hot keys
• Panel array mode lets you monitor multiple ports at the same time
• Add or remove computers without powering down switch
• Auto-scan mode automatically sequences through all accessible active ports
• Windows-based log server records events and saves them to a searchable database

Large 17 in. LCD

• Supports video resolutions up to 1920 x 1080
• LCD flips up and folds down for full access to rack equipment when not in use
• Dual-rail design lets you push in keyboard while LCD stays open
• Wide display makes multitasking easier
• DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD

Advanced Security Features

• Features advanced encryption technologies, such as 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL
• Supports RADIUS and LDAP/S remote authentication
• Allows up to 64 user accounts
• Up to 32 users can log on simultaneously with multi-user operation enabled

Expandability and Long-Lasting Reliability

• Compatible with all major operating systems and browsers
• Flash firmware is upgradable over a network connection
• Heavy-duty steel housing stands up to frequent use

Rack-Mounted Convenience

• Mounts into 1U of EIA-standard 19 in. rack
• Also mounts in 2-post rack using optional B019-000 rack-mount kit

TAA-Compliant

• Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

For more information, please see DataSheet
