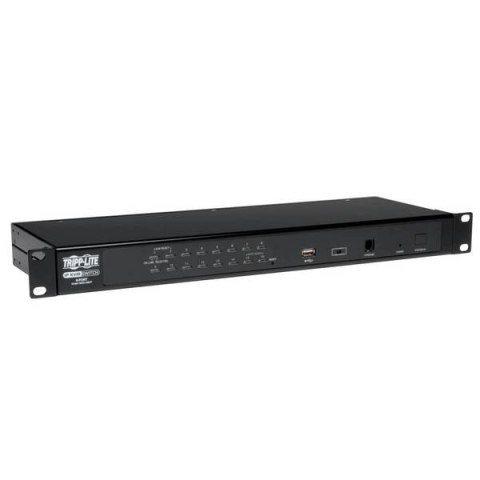

Tripp-Lite B022-U16-IP NetDirector 16-Port 1U Rack-Mount IP KVM Switch

Control up to 16 computers or servers directly from anywhere in the world via LAN, WAN or the Internet with built-in IP remote access.

• Built-in IP access from anywhere in the world
• Daisy-chain up to 31 additional B022-U08 switches to control up to 264 computers
• Works with all major operating systems
• Compatible with both USB and PS/2 connections
• Enables up to 64 secure user accounts
• Space-saving 1U rack-mount installation

Package Includes:

• B022-U16-IP NetDirector 16-Port 1U Rack-Mount IP KVM Switch
• (2) USB/PS2 Combo KVM cable kits, 6-ft. length
• USB/PS2 Combo console cable kit
• RJ11-to-DB9 firmware upgrade cable
• Mounting hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A / Output: 5.3V, 2.4A)
• Rubber feet
• CD with owner's manual and device files
• Quick Start Guide

Features:

Complete Control from Anywhere

• Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
• Remotely access computers via LAN, WAN or the Internet via Windows or Java
• Windows- and Java-based non-browser applications provide access without a browser
• Advanced on-screen display supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 ( at 60 Hz) at the remote console
• Panel Array Mode - remotely monitor multiple ports at the same time.

Built-In Security to Keep Your Data Safe

• Create up to 64 separate accounts
• 3 levels of security (Admin, User and Select) allow you to delegate proper access
• Features advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES
• Supports RADIUS and LDAP/S remote authentication
• LEDs built into the port-selection pushbuttons indicate when a computer is connected, powered on and selected
• Included firmware upgrade cable keeps the software up to date

Versatile to Meet Your Specific Needs

• Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches
• Compatible with all major operating systems
• User-friendly web management interface can be displayed in English, Spanish, French, German and Japanese
• Included cable kits let you use either USB or PS/2 keyboards and mice
• View remote sessions in black and white, reducing the amount of data traveling over the network and improving keyboard/mouse response time over IP
• Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol

Keep Your Colleagues in the Loop

• Windows-based log server records events and saves them to a searchable database
• Users who are logged in simultaneously can communicate via message board and manage port access

Rack-Mounted Convenience

• Mounts into just 1U to save valuable cabinet or rack space
• Rugged steel housing and premium connectors built to last

For more information, please see DataSheet
