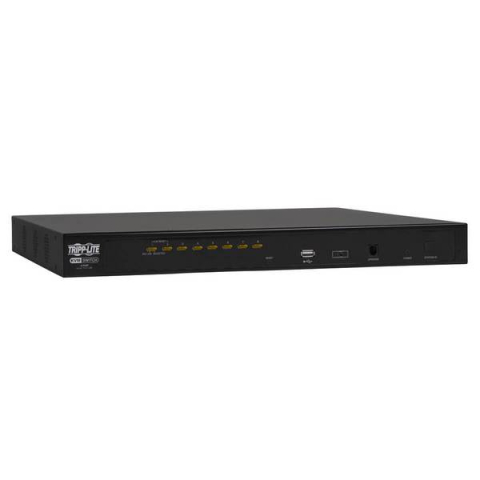

Tripp-Lite B022-U08 NetDirector 8-Port 1U Rack-Mount KVM Switch

Controls up to 8 computers or servers using one keyboard, mouse and monitor or up to 256 as part of a daisy-chain. Functions as a stand-alone KVM switch or an expansion unit to other Tripp Lite NetDirector KVM switches.

• Supports video resolutions up to 2048 x 1536
• Daisy-chain up to 31 additional switches to control up to 256 computers
• Front USB port enables external data sharing to all computers
• Works with all major operating systems
• Optional IP remote access with B051-000

Package Includes:

• B022-U08 NetDirector 8-Port 1U Rack-Mount KVM Switch
• USB/PS2 combo console cable kit
• RJ45-to-DB9 firmware upgrade cable
• AC power adapter (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5.3V, 2.4A)
• Grounding wire
• Mounting hardware
• Rubber feet
• CD with owner's manual
• Quick Start Guide

Features:

Control Up to 256 Computers or Servers

• Advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536
• Compatible with USB and PS/2 keyboards and mice
• Switch between computers via front-panel buttons, OSD or keyboard hotkeys
• Auto-scan feature lets you monitor all connected computers without manually switching between them
• Daisy-chain up to 31 additional switches to control a maximum of 256 computers or servers
• Position in daisy-chain sensed automatically without adjusting DIP switch settings

Built-In Security Keeps Data Safe

• 2 levels of security (4 Users and one Admin) allow you to delegate proper access
• Included firmware upgrade cable keeps the software up to date

Versatile to Meet Your Specific Needs

• Compatible with all major operating systems
• User-friendly OSD available in English, Spanish, French, German and Japanese
• Front USB 1.1 port accepts USB peripherals, such as flash drives and external hard drives, for data sharing with all connected computers

Optional IP Remote Access

• Add B051-000 Server Remote Control to operate all connected computers from anywhere via LAN, WAN or the Internet

Rack-Mounted Convenience

• Mounts into just 1U to save valuable rack space
• Rugged steel housing and premium connectors built to last

For more information, please see DataSheet
