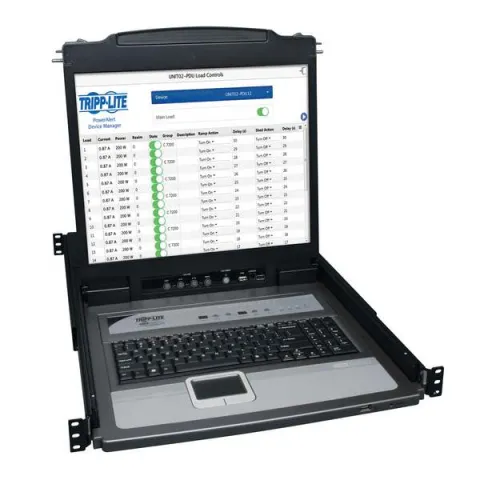

Tripp-Lite B020-U08-19KTAA NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables; TAA Compliant

Control up to 8 computers with one KVM switch with integrated console. This KVM switch is a smart solution for centralized server control that saves rack space and money. And, it's TAA compliant for GSA Schedule purchases.

• Occupies just 1U of space in a rack-mountable drawer
• 19" LCD screen supports video resolutions up to 1280 x 1024
• Simplifies IT tasks with easy switching between all 8 ports
• Provides 2-level password security (administrator and user)
• Combo cables connect to PS/2 or USB servers, no adapter needed

Package Includes:

• B020-U08-19KTAA 1U rackmount console KVM switch with 19" LCD
• (x8) P778-006 6-ft. (1.83 m) USB/PS2 combo KVM cable kits
• USB/PS2 combo console cable kit
• RJ11 to DB9 firmware upgrade cable
• C13 to 5-15P power cord
• Grounding wire
• Rackmount hardware
• CD with owner's manual
• Quick start guide

Features:

Saves Space and Money

• Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
• Mounts into 19"-wide rack, 26"-38" deep
• Control up to 8 computers/servers from one easily accessible console - ideal when rack space is at a premium
• Includes eight P778-Series cables that support computers with either PS/2 or USB connections
• Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
• Eliminates need to buy separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

• Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
• Hot pluggable; add or remove computers without having to power down the switch
• Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19" LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024
• DDC emulation allows optimal output to LCD

Multi-Level Password Security

• Enhances security by limiting access to administrator and up to 4 local users
• Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

• Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
• A console cable kit is included for connecting the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit
• An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral with all the connected servers
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use

TAA Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchas

For more information, please see DataSheet
