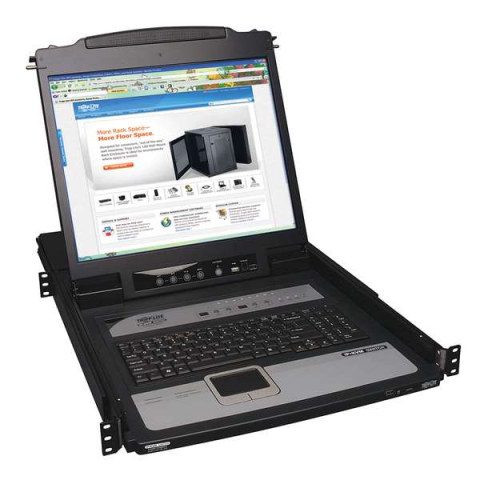

Tripp-Lite B020-U08-19-IP NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD and IP Remote Access

Control up to 8 computers from anywhere in the world with a single KVM switch with integrated console and IP remote access. This KVM switch is a smart solution for secure server control that saves rack space and money.

• Control computers/servers locally or via LAN, WAN or Internet
• Occupies just 1U of space in a rack-mountable drawer
• 19" LCD screen supports video resolutions up to 1280 x 1024
• Allows up to 64 user accounts, with multi-level security
• Compatible with all operating systems

Package Includes:

• B020-U08-19-IP 8-Port console KVM switch with 19" LCD and built-in IP access
• (x2) P778-Series 6-ft. (1.83 m) USB/PS2 combo KVM Cable Kits
• USB/PS2 combo external console Cable Kit
• Grounding wire
• RJ11 to DB9 firmware upgrade cable
• Rackmount hardware
• C13 to 5-15P power cord
• CD with owner's manual, quick start guide, and device files

Features:

KVM Console Extender for Digital Signage or Extending Video in Offices or Command Centers

Saves Space and Money

• Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer - ideal when rack space is at a premium
• Mounts into 19"-wide rack, 26"-38" deep
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

IP Remote Access for Fewer Trips to the Server Room

• Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet
• Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping

Simplifies IT Tasks

• Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
• Panel array mode lets you monitor multiple ports at same time
• Supports RADIUS and LDAP/S authentication
• Auto-scan mode automatically sequences through all active ports accessible to the user
• Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation
• Log server tracks events on your installation

Large 19" LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
• DDC emulation allows for optimal output to the LCD

Advanced Security Features

• Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
• Allows up to 64 user accounts, with 3 levels of access

Expandability and Long-Lasting Reliability

• Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
• Compatible with all major operating systems for easy integration into existing structure
• Firmware is upgradable so your software remains up-to-date
• Heavy-duty steel housing stands up to frequent use

For more information, please see DataSheet
