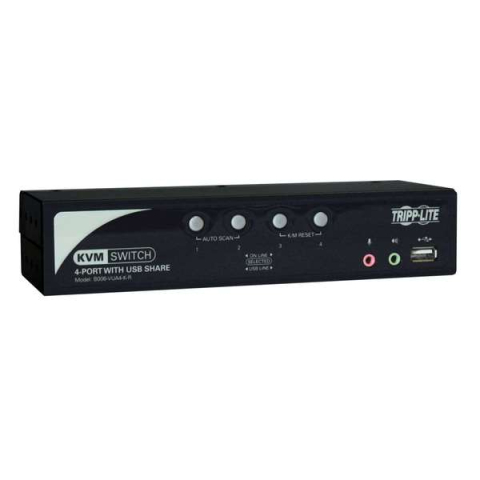

Tripp-Lite B006-VUA4-K-R 4-Port KVM Switch with Audio OSD and Peripheral Sharing

Features

• Control up to 4 computers from a single monitor, keyboard and mouse
• Package includes (x2) 4-ft. (1.22 m) and (x2) 6-ft. (1.83 m) USB + Audio KVM cable kits
• P756-010 10-ft. (3.05 m) USB + Audio KVM cable kits are available separately if longer lengths are required
• P757-010 10 ft. PS/2 + Audio KVM cable kits are available separately for connection of PS/2 computers
• Built-in 2-Port USB 2.0 hub allows USB peripherals to be shared amongst computers connected via USB KVM cable kits
• Built-in 3.5mm jacks allow for speaker and microphone audio to be shared amongst the connected computers
• KVM, Audio and USB can be switched independently of each other - Control one computer while listening to audio from a second computer and printing to a USB printer from a third
• Switch the focus of KVM, Audio and USB functionality via pushbuttons, OSD, or hotkey commands
• Includes a mouse switching function that allows focus to be switched between ports by double-clicking the scroll button on a scroll mouse
• Automatically monitor connected computers via Auto Scan Mode
• Provides two levels of security, with 1 Administrator account and up to 4 User accounts
• OSD can be displayed in English, Japanese or German
• Includes rackmount hardware that allows for mounting in a 19in rack
• Includes a PS2 to USB adapter, which allows you to connect a PS/2 keyboard and mouse to control the connected computers
• Supports video resolutions up to 2048 x 1536, DDC2B
• The KVM switch stores the monitor's EDID to optimize display resolution
• Constructed of heavy-duty steel housing
• Compatible with all major operating systems

Package Includes

• B006-VUA4-K-R KVM switch
• (4) USB + Audio KVM cable kits
• PS/2 to USB adapter cable
• Firmware upgrade cable
• 19in rackmount hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A / Output: 5.3V, 2.4A)
• Owner's Manual

For more information, please see Data Sheet
