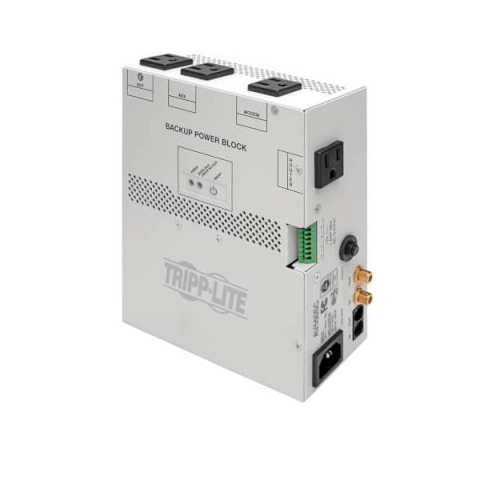

Tripp-Lite AV550SC 550VA Audio/Video Backup Power Block - Exclusive UPS Protection for Structured Wiring Enclosure

The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.

• 4 AC outlets (including 1 delay-on outlet for router)
• Automatic recycle/reset button; Auto-restart capability
• Regulated 12V DC output for 4 devices; Complete surge suppression
• Convenient installation fits structured wiring enclosures without using mounting screws or brackets
• HD-compatible 2.2GHz coaxial and telephone/modem/DSL line surge protection; 550VA UPS capacity

Package Includes:

• AV550SC backup power block
• Detachable 6 in. NEMA 5-15P power cord
• Owner's manual

Features:

• 3 widely-spaced AC outlets (2 Auxiliary, 1 Modem) power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) - 4 outlets total
• Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets
• 60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering)
• 12V DC (1-Amp) output connector provides an additional output power source for 12V DC devices as well as battery backup protection for 4 devices
• Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup
• HD-compatible 2.2GHz coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.
• Tel/modem/DSL jacks protect connected telephone,modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise
• IEC power input connector accepts included 6-inch power cord
• Diagnostic/Overload LEDs: Alert users to potential power problems before they affect connected equipment.
• Resettable circuit breaker prevents dangerous system overloads
• Auto-restart capability eliminates the need to perform an on-site restart
• 550VA/300 watts standby UPS system
• Mounting screw holes are included on the back of the unit for convenient board, wall or ceiling mounting (for projectors)
• Customizable labels for easier cord/cable indentification and maintenance

For more information, please see DataSheet
