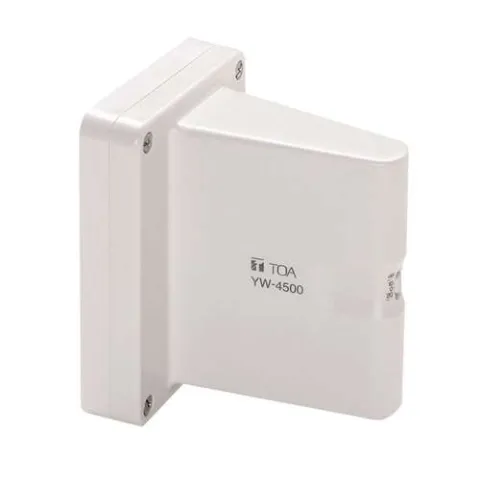

TOA YW-4500 Remote Antenna Omnidirectional Dipole 7-12V 15mA for Wall-/Ceiling Mounting S5 Series WT-4800 WT-4820 WT-5805 WT-5800 WT-D5800

The wireless antenna YW-4500 has been designed for UHF band wireless systems with a frequency range of 572 - 608 MHz. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 is a dipole antenna designed to be installed indoors. Use coaxial cable with a 75Ω impedance. When ordering the YW-4500, use matching receiver models WT-58xx, WT-D5800 digital receiver, or WTU-4800 tuner packs with the suffixes H01 or RH1 US. It may also be used with Trantec S5.3 products.

Features:

• Omnidirectional dipole antenna for wall or ceiling mounting
• By means of the integrated RF amplifier losses induced by long cable runs can be compensated

Package includes:

• Antenna x 1
• M3.5 screw for wiring box x 2
• Tapping screw (M4) for wooden wall x 2
• RG-6/U or RG-11/U sleeve x 1

For more information, please see Data Sheet
